VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs
15 Inch PCAP Touch Monitor 16:9 Ratio Anti-Vandal VGA DVI For ATMs
Description of PCAP Touch Monitor
This 15 inch PCAP touch monitor comes with high durability, accuracy and multi-touch support, which can be used normally in harsh environments. It is dust-proof, vandal-proof and anti-glare PCAP touch monitor. VGA and DVI interfaces are provided for use. In addition, other sizes (7’’-43’’) can be offered. Various mount method can be optional, VESA mount, horizontal or vertical mount.
PCAP Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0150UA-CA6PHA(P/N:KOT-150P-015-01) | |
| Series | OT | |
| Display Type | 4:3 Ratio 15" TFT-LCD | |
| Active Area | 304.128×228.096(mm) | |
| Monitor Dimensions (W*H*D) | 369.7*292.5*48.1(mm) | |
| Suggested Resolution | 1024*768 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 350cd/m2(Typ.)/315cd/m2(Min.) |
| With Touch Monitor and peep-proof protection film | 178.5cd/m2(Typ.)/161cd/m2(Min.) | |
| Response Time (Typ.) | 30ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89°(Typ.)/85°/85°(Min.) |
| Vertical(up/down) | 89°/89°(Typ.)/85°/85°(Min.) | |
| Contrast Ratio (Typ.) | 1000:1(Typ.)/700:1(Min.) | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240V AC, 50-60 Hz The DC inner diameter of power adapter:2.1mm |
|
| MTBF | ≥50,000 Hours | |
| LED Back Light Life (Typ.) | ≥50,000 Hours | |
| Weight(N.W/G.W) | 3.0Kg(1pcs)/7.2Kg(2pcs in one package) | |
| Package dimensions | 445*200*395(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
| Mount Interface | Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Touch Screen | |
| Touch Type | 15" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Resolution ratio | 16384*9600 |
| Hardness | 7H |
| Light Transmittance | ≥85% |
| Anti-vandal test | 500g steel ball drop from 1.3m high test |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 304*228(mm) |
| Thickness | 3.9±0.2(mm) |
| Touch Test | 50,000,000 times |
| Input Voltage | 5V |
| Peep-proof protection film | |
| Type | peep-proof protection film |
| The angle range of Anti-peep | Horizontal(left/right): 35°±5° |
| Thickness | 0.58±0.05(mm) |
| Light Transmittance | ≥60%±5% |
PCAP Touch Monitor Mechanical Dimensions

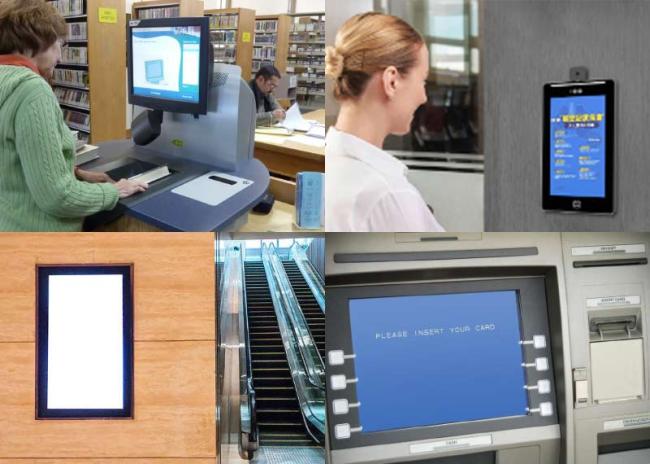

Applications
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the PCAP touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
