Usb 23 Inch Pcap Touch Monitor Ip65 Waterproof Vandal Proof
23 Inch PCAP Touch Monitor IP65 Waterproof Vandal-Proof With Touch Lcd Screen
Description of PCAP Touch Monitor
This 23 inch PCAP touch monitor comes with Projected Capacitive touch technology with high resolution, high-quality image and full viewing angle. This touch monitor supports multi-point touch, with great interactive experience, which also comes with LED flexible stripes, ideal choice for gaming. Besides, it also supports multiple mounting options, including VESA mount, horizontal and vertical brackets mount.
Specification of PCAP Touch Monitor
| Model No. | KOT-0230U-CA5P | |||
| Series | OT , With LED Flexible Stripes | |||
| Display Type | 16:9 Ratio 23” Active matrix TFT-LCD | |||
| Display Active Area | 511.8mm×289mm | |||
|
Monitor Dimensions |
Width: 588.2mm Height : 365.4mm Depth: 45mm | |||
| Suggested Resolution | 1920×1080 @ 60Hz | |||
| Support Colors | 16.7M | |||
|
Brightness(Typ.) |
Pure LCD Panel (Brightness from 300~1000cd/m2 can be customized) | 250cd/m2 | ||
| With Projected Capacitive Touchscreen | 212cd/m2 | |||
| Display Response Time(Typ.) | 14ms | |||
|
Viewing Angle(Typ.at CR>10) |
Horizontal(left/right) | 89°/89° | ||
| Vertical(up/down) | 89°/89° | |||
| Contrast Ratio(Typ.) | 1000:1 | |||
| Video Input | VGA and DVI and HDMI | |||
| Frequency(H/V) | 30～80KHz / 60～75Hz | |||
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz |
|||
|
Environment |
Operating Temp. | 0～50°C | ||
| Storage Temp. | -20～60°C | |||
| Operating RH | 20%～80% | |||
| Storage RH | 10%～90% | |||
| MTBF | 30,000 Hours | |||
| Back Light Life(Typ.) | 30,000 Hours | |||
| Weight(N.W/G.W) | N.W:7.5Kg(single) /G.W:17.3Kg (2pcs in one package) | |||
| Package Dimensions | 703×181×485(mm) (2pcs in one package) | |||
| Power Consumption | 37W(approximately, Includes touch display and LED lamp) | |||
| Standby Power Consumption | 0.6W (approximately, Touch display only) | |||
| Mount Interface | VESA 100*300mm and 100*400mm | |||
|
OSD Control |
Buttons | AUTO,+,POWER,-,MENU | ||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
| Agency Approval | CCC, ETL, FCC, UL, CE, CB, RoHs | |||
| Regular Warranty | 1 Year | |||

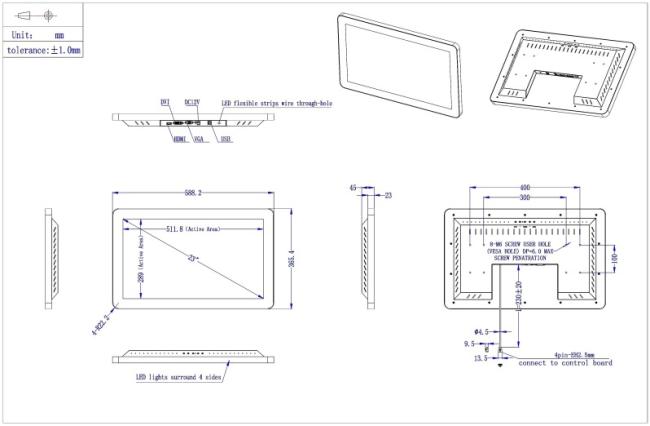

Mechanical Dimensions
Application:

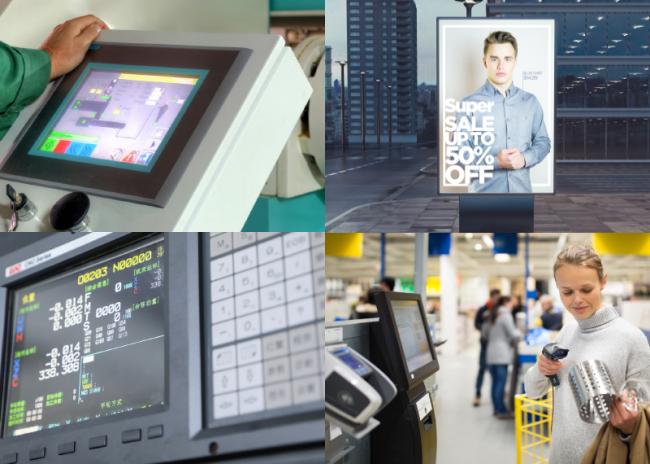

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ:
1. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
