15.6 Inch Surface Acoustic Wave Touch Monitor 1920x1080 Resolution Dust Proof
Product Description:
15.6 Inch SAW Touch Monitor 1920*1080 Resolution Dust-proof
This 15.6" Saw touch monitor comes with saw touchscreen technology, high sensitivity, free of drift and durability, which supports excellent interactive experience. And it delivers high resolution, 16:9 ratio display with good clarity and image quality. Moreover, the saw touch monitor provides VGA and DVI interfaces for use, USB port for touch. With our professional R&D engineers, customized services are available. Other sizes also are optional (7"-55").
Specification
| Complete Machine | ||
| Model No. | KOT-0156U-SA4BP (P/N:KOT-156P-004) | |
| Series | OT | |
| Display Type | 16:9 Ratio 15.6" TFT-LCD | |
| Active Area | 344.23*193.54(mm) | |
| Monitor Dimensions (W*H*D) | 388.5*237.5*43(mm) | |
| Suggested Resolution | 1920*1080 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 400cd/m2 |
| With Touch Monitor | 340cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70°/70° |
| Vertical(up/down) | 60°/60° | |
| Contrast Ratio (Typ.) | 650:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 30～80KHz / 50～76Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥15,000 Hours | |
| LED Back Light Life (Typ.) | ≥15,000 Hours | |
| Weight(N.W/G.W) | 3Kg(1pcs)/8.25Kg(2pcs in one package) | |
| Package dimensions | 468*150*323(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |

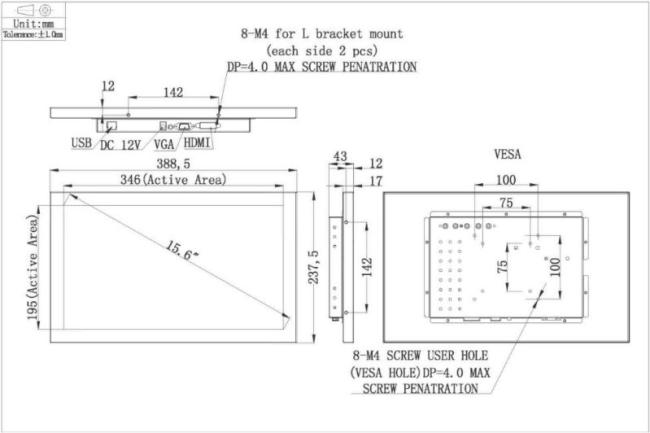

Mechanical Dimensions
Applications:
KeeTouch Saw touch monitors are widely used in industries such as retail, gaming, kiosk, hotels, self-service, travel service, education, finance, transit, conference, healthcare, public service, e-commerce, restaurants, payment systems, museums, exhibitions, smart home, subways, control and operation systems, railway stations, airports, entertainments, etc.
Support and Services:
We provide comprehensive technical support and services for the SAW Touch Monitor.
- Troubleshooting and diagnosing any issues with the SAW Touch Monitor.
- Providing the latest updates and software patches.
- Replacing any broken parts or components.
- Providing online and phone support.
- Providing technical advice and guidance.
FAQ:
A1: The brand name is KEETOUCH and the model number is KOT-156P-004.
A2: The price is negotiable.
A3: The minimum order quantity is 1 piece.
A4: The packaging details is two pieces per carton.
A5: The delivery time is 7-15 work days, payment terms is T/T, Western Union,L/C and certification is CCC, UL, FCC, CE, CB, RoHS.
