21.5 Inch Infrared Touchscreen Monitor 1920x1080 Resolution IP65 Waterproof
21.5 Inch IR Touch Monitor 1920x1080 resolution IP65 waterproof
Description of IR Touch Monitor
This 21.5 inch IR touch monitor delivers high durability, accuracy and multi-touch support with IP65 waterproof, dust-proof and anti-vandal functions. And it comes with 1920*1080 resolution, 1000:1 contrast ratio, delivering high quality image. In addition, the VGA, DVI and USB ports are provided for use. With the own R&D department, OEM and ODM services are welcomed. Also, other sizes are optional (15-65").
Infrared Touch Monitor Specifications
| Complete Machine | ||
| Model No. | KOT-0215U-IR3P (P/N:KOT-215C-007) | |
| Series | OT | |
| Active Area | 478*270(mm) | |
| Monitor Dimensions (W*H*D) | 520*312*45.8(mm) | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Frequency (H/V) | 40～80KHz / 50～76Hz | |
| Power Supply |
Type: External brick Display voltage: DC 12V±5% |
|
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| Weight(N.W/G.W) | 17.25Kg(2pcs)/20.5Kg(2pcs in one package) | |
| Package dimensions | 605*195*400(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Regular Warranty | 1 year | |
Infrared Touch Monitor Mechanical Dimensions
Applications

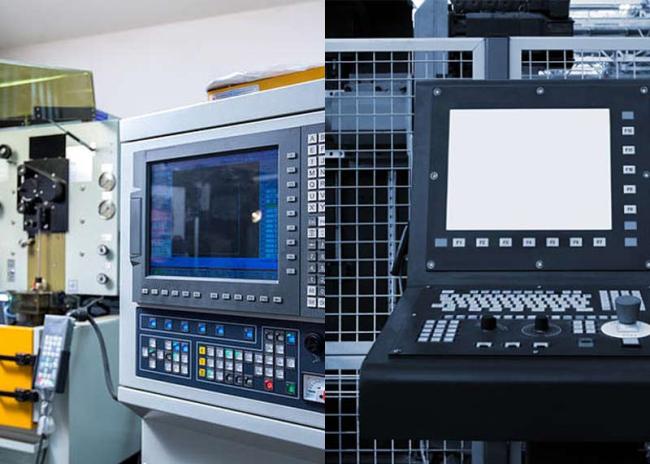

IR Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the IR Touch Monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the IR Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
