21.5 Inch SAW Touch Monitor With High Resolution LCD Screen
Product Description:
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
SAW Touch Monitor is an open frame touchscreen, designed with advanced SAW (surface acoustic wave) technology, to provide an interactive experience. It has a 21.5 inch screen size, 85°/85°/80°/80° viewing angle, and a Net Weight of 5.7Kg (1pcs) / 13.8Kg (2pcs in one package). The SAW Touch Monitor is perfect for various applications, such as interactive kiosks, digital signage, retail, gaming, etc. Its open frame design allows for easy integration, and ensures a secure fit. With an ultra-thin profile, the SAW Touch Monitor is also incredibly lightweight, making it a great solution for a variety of projects.
Specification
| Complete Machine | ||
| Model No. | KOT-0215US-SA4BCP (PN: KOT-215C-001) | |
| Series | OT | |
| Display Type | 16:9 Ratio 21.5" TFT-LCD | |
| Active Area | 476.64*268.11(mm) | |
| Monitor Dimensions (W*H*D) | 511.7*298*42.6(mm) | |
| Suggested Resolution | 1920*1080@ 60Hz | |
| Support Colors | 16.2M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 225cd/m2 | |
| Response Time (Typ.) | 16ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Frequency (H/V) | 30～80KHz / 60～75Hz | |
| Power Supply | Type: External brick Display voltage: DC 12V±5% | |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 5.7Kg(1pcs)/13.8Kg(2pcs in one package) | |
| Package dimensions | 605*195*400(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface | 1.VESA 75mm and 100mm | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |

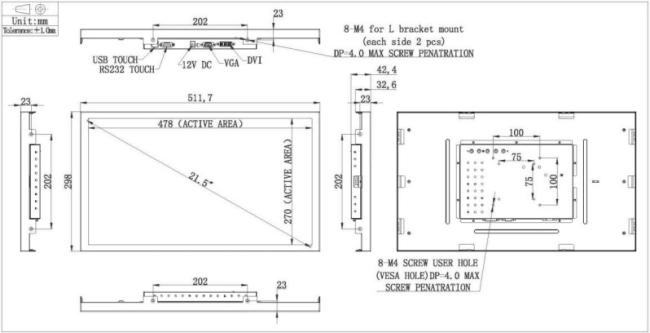

Mechanical Dimensions
Applications:

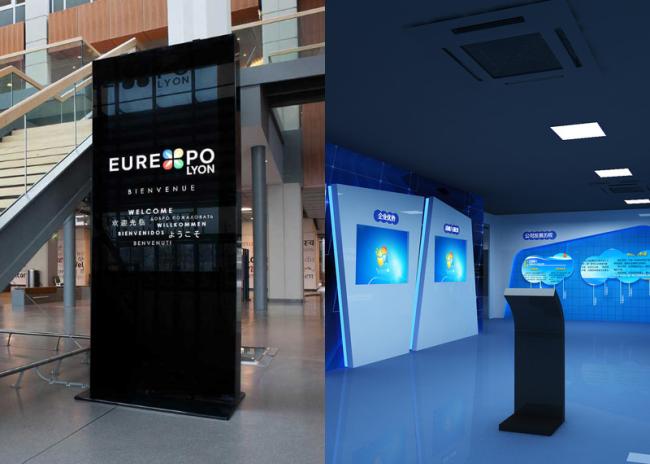

SAW Touch Monitors find extensive applications across various industries, including kiosks, retail, finance, gaming, self-service, transit, conferences, education, healthcare, public services, e-commerce, hotels, restaurants, travel services, payment systems, museums, exhibitions, smart homes, subways, control and operation systems, railway stations, airports, and entertainment, among others.
Mechanical Dimensions:
FAQ:
- Q: What is the Brand Name of the SAW Touch Monitor?
- A: The Brand Name of the SAW Touch Monitor is KeeTouch.
- Q: What is the Model Number of the SAW Touch Monitor?
- A: The Model Number of the SAW Touch Monitor is KOT-215C-001.
- Q: Where is the SAW Touch Monitor produced?
- A: The SAW Touch Monitor is produced in Shenzhen, China.
- Q: What certifications does the SAW Touch Monitor have?
- A: The SAW Touch Monitor has certifications of CCC, UL, FCC, CE, CB, and RoHS.
- Q: What is the minimum order quantity of the SAW Touch Monitor?
- A: The minimum order quantity of the SAW Touch Monitor is 1pcs.
