High Sensitivity Pcap Touch Display Fast Response Dust Resistant
Product Description:
9.7 Inch PCAP Touch Monitor Multi-touch 1024*768 Resolution For Kiosk
This 9.7 inch PCAP touch monitor comes with projected capacitive touch technology with good clarity and image quality. It supports multi-touch, with high sensitivity and fast response, providing users with an excellent interactive experience. It includes a VGA and a DVI video interfaces, as well as a USB port for touch.
Specification:
| Complete Machine | ||||
| Model No. | KOT-097P-003 | |||
| Active Area | 196.6 x 147.46mm | |||
| Monitor Dimensions (W*H*D) | 259*215*38.8(mm) | |||
| Support Colors | 16.7M | |||
| Brightness (Typ.) | Pure LCD Panel | 300cd/m²(Typ.)/220cd/m²(Min.) | ||
| With Touch Monitor | 238cd/m²(Typ.)/167cd/m²(Min.) | |||
| Response Time (Typ.) | 20ms | |||
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70 °/70 °(Typ.)/ 60 °/70 °(Min.) | ||
| Vertical(up/down) | 80 °/80 °(Typ.)/70 °/80 °(Min.) | |||
| Frequency (H/V) | 43.86～60KHz / 60～75Hz | |||
|
Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz The DC inner diameter of power adapter: 2.1mm |
|||
|
Environment |
Operating Temp. | 0～50°C | ||
| Operating RH | 20%～80% | |||
| Storage Temp. | -20～60°C | |||
| Storage RH | 10%～90% | |||
| MTBF | ≥ 10,000 hours | |||
| LED Back Light Life (Typ.) | ≥ 10,000 hours | |||
| Weight(N.W/G.W) | 2Kg(1pcs)/4.5Kg(2pcs in one package) | |||
| Package dimensions | 259.38*215.48*39.66(mm)(2pcs in one package) | |||
| Power Consumption | Standby Power: ≤1.5W Operating Power: ≤12W | |||
| Mount Interface |
1. VESA 75mm 2.Mount bracket, horizontal or vertical mount |
|||
| OSD Control | Buttons | Confirm, MENU, AUTO, Up, Down, Power | ||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
| Regular Warranty | 1 year | |||
| Touch Screen | |
| Touch Type | 9.7 inch Projected Capacitive Riot-proof Touch Screen |
| Touch input | USB |
| Response Time | ≤15ms |
| Hardness | 6H |
| Light Transmittance | >85% |
| Riot Test | Meets 130g Steel Ball, 50cm Drop Experiment |
| Support System | WIN7,WIN8,WIN10 support 10 points, XP support single point |
| Active Area | 197.6*148.5(mm) |
| Thickness | 1.85±0.2(mm) |
| Touch Test | ≥ 50,000,000 times |
| Input Voltage | DC 5V±5% |

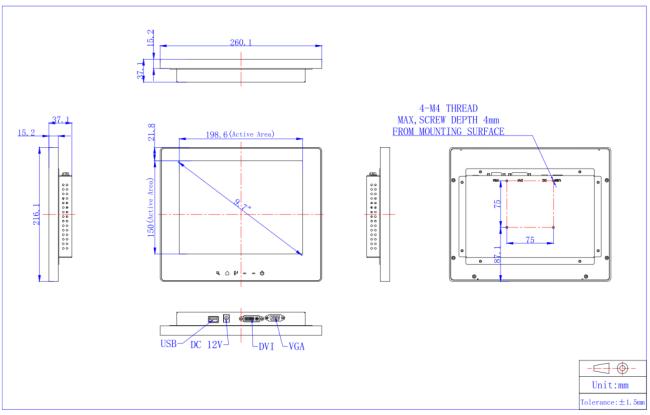

Mechanical Dimensions:
Applications:
PCAP Touch Monitor are widely used in retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for over 17 years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customers’ individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch, based in Shenzhen, China, boasts over 17 years of experience as a premier manufacturer of touch products
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
3. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
