9.7 Inch PCAP Touch Monitor With 1024*768 Resolution And Pure Flat Design
Product Description:
9.7 Inch PCAP Touch Monitor with 1024*768 resolution and pure flat design
The PCAP Touch Monitor is a capacitive touch screen display with a 9.7 inch PCAP touch screen panel. It is specifically designed to deliver a high resolution touch experience with a maximum touch resolution of 16384*9600. The suggested resolution for the PCAP touch screen monitor is 1024*768, and it operates in a temperature range of 0 to 50°C. This monitor is backed by a regular 1-year warranty, giving you the assurance of long-term reliability.
Features:
- Product Name: PCAP Touch Monitor
- Multi-Touch Interactive Display
- Capacitive Touch Screen Display
- Touch Screen Resolution: 16384*9600
- Screen Size: 9.7
- LED Back Light Life: 10,000 Hours
- Operating Temp: 0～50°C
- Regular Warranty: 1 Year
Specification:
| Complete Machine | ||||
| Model No. | KOT-097P-003 | |||
| Type | OT | |||
| Display Type | 4:3 Ratio 9.7＂TFT-LCD, LED backlight | |||
| Active Area | 196.6 x 147.46mm | |||
| Monitor Dimensions (W*H*D) | 259*215*38.8(mm) | |||
| Suggested Resolution | 1024*768 | |||
| Support Colors | 16.7M | |||
| Brightness (Typ.) | Pure LCD Panel | 300cd/m²(Typ.)/220cd/m²(Min.) | ||
| With Touch Monitor | 238cd/m²(Typ.)/167cd/m²(Min.) | |||
| Response Time (Typ.) | 20ms | |||
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70 °/70 °(Typ.)/ 60 °/70 °(Min.) | ||
| Vertical(up/down) | 80 °/80 °(Typ.)/70 °/80 °(Min.) | |||
| Contrast Ratio (Typ.) | 500:1(Typ.)/400:1(Min.) | |||
| Video Input | VGA/DVI | |||
| Frequency (H/V) | 43.86～60KHz / 60～75Hz | |||
|
Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz The DC inner diameter of power adapter: 2.1mm |
|||
|
Environment |
Operating Temp. | 0～50°C | ||
| Operating RH | 20%～80% | |||
| Storage Temp. | -20～60°C | |||
| Storage RH | 10%～90% | |||
| MTBF | ≥ 10,000 hours | |||
| LED Back Light Life (Typ.) | ≥ 10,000 hours | |||
| Weight(N.W/G.W) | 2Kg(1pcs)/4.5Kg(2pcs in one package) | |||
| Package dimensions | 259.38*215.48*39.66(mm)(2pcs in one package) | |||
| Power Consumption | Standby Power: ≤1.5W Operating Power: ≤12W | |||
| Mount Interface |
1. VESA 75mm 2.Mount bracket, horizontal or vertical mount |
|||
| OSD Control | Buttons | Confirm, MENU, AUTO, Up, Down, Power | ||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
| Regular Warranty | 1 year | |||
| Touch Screen | |
| Touch Type | 9.7 inch Projected Capacitive Riot-proof Touch Screen |
| Touch input | USB |
| Response Time | ≤15ms |
| Touch Screen Resolution | 16384*9600 |
| Hardness | 6H |
| Light Transmittance | >85% |
| Riot Test | Meets 130g Steel Ball, 50cm Drop Experiment |
| Support System | WIN7,WIN8,WIN10 support 10 points, XP support single point |
| Active Area | 197.6*148.5(mm) |
| Thickness | 1.85±0.2(mm) |
| Touch Test | ≥ 50,000,000 times |
| Input Voltage | DC 5V±5% |
Applications:

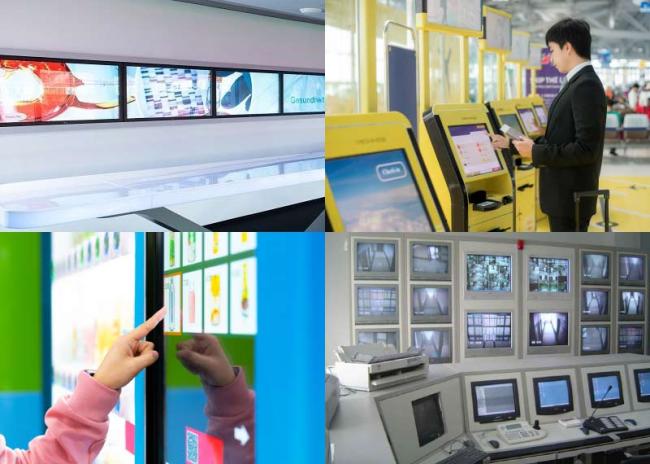

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Customization:
FAQ:
- Q: What is PCAP Touch Monitor?
- A: PCAP Touch Monitor, also known as Projected Capacitive Touch Monitor, is a type of touch screen with high accuracy, high resolution and fast response time. It is produced by KeeTouch, Model Number KOT-097P-003(KOT-0907U-CA4P), which is certified by CCC, UL, FCC, CE, CB, RoHS. It is produced in ShenZhen, China.
- Q: Where can I buy a PCAP Touch Monitor?
- A: You can purchase PCAP Touch Monitor directly from KeeTouch. The minimum order quantity is one piece and the price is negotiable. It will be packaged in one package and delivery time is 7-15 work days. Payment terms accepted are T/T, Western Union,L/C.
- Q: Does the PCAP Touch Monitor require any special installation?
- A: No, the PCAP Touch Monitor does not require any special installation. It can be easily installed with just a few simple steps.
- Q: What is the response time of the PCAP Touch Monitor?
- A: The response time of the PCAP Touch Monitor is very fast, providing an accurate and smooth user experience.
- Q: How many PCAP Touch Monitors can be produced in one week?
- A: The production capacity of PCAP Touch Monitor is 10000 pieces per week.
