17 Inch PCAP Touch Monitor Open Frame With Anti-Riot TouchScreen Display For Kiosks
Product Description:
17 Inch PCAP Touch Monitor Open Frame With Anti-Riot TouchScreen Display For Kiosks
PCAP Touch Monitor is a multi-touch digital monitor that offers an anti-riot capacitive touchscreen with a 17 inch panel. It is designed to provide a smooth and accurate touch response, and features a VGA/DVI video input and a 1280*1024 resolution for superior display quality. This PCAP Touch Screen Monitor also utilizes an LED backlight with a lifespan of up to 30,000 hours, ensuring a long-lasting performance. It is the perfect solution for any user looking for a reliable and responsive touchscreen experience.
Specification:
|
Complete Machine |
||
| Model No. | KOT-0170U-CA4P | |
| Series | OT | |
| Display Type | 5:4 Ratio 17" TFT-LCD | |
| Active Area | 337.9*270.3(mm) | |
| Monitor Dimensions (W*H*D) | 378.9*313.3*47.3(mm) | |
| Suggested Resolution | 1280*1024 @ 60Hz | |
| Support Colors | 16.7M | |
| Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
| With Touch Monitor | 212cd/m2 | |
| Response Time (Typ.) | 5ms | |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio (Typ.) | 1000:1 | |
| Video Input | VGA/DVI | |
| Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
|
Power Supply |
Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz |
|
|
Environment |
Operating Temp. | 0～50°C |
| Operating RH | 20%～80% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 10%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Back Light Life (Typ.) | ≥30,000 Hours | |
| Weight( N.W/G.W ) | 4.1Kg(1pcs)/9.85Kg(2pcs in one package) | |
| Package dimensions | 466*185*403(mm)(2pcs in one package) | |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
| Mount Interface |
1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
|
| OSD Control | Buttons | AUTO, +,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS | |
| Regular Warranty | 1 year | |
| Touch Screen | |
| Touch Type | 17" Riot capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | ≥85% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 340.92*273.34(mm) |
| Thickness | 3.9±0.3(mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |

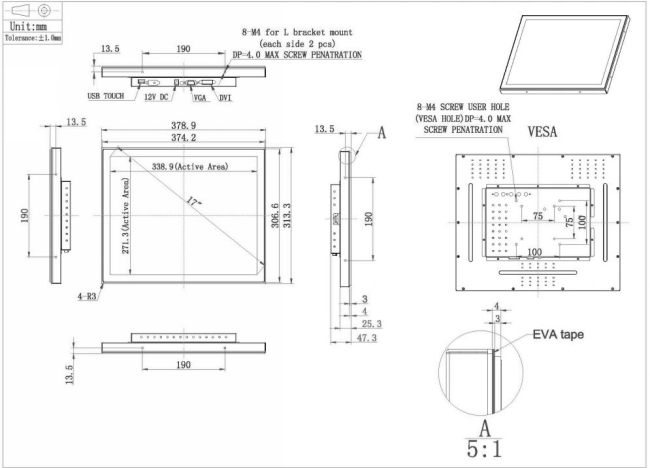

Mechanical Dimensions:
Applications:
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Support and Services:
At PCAP Touch Monitor, we strive to provide the highest quality of support and service for our products. We strive to make sure that all our customers receive the best possible experience when using our products.
We provide technical support to all our customers. Our technical support team is available 24/7 to answer any questions or concerns you may have. We also offer online tutorials and manuals to help you troubleshoot any issues you may be experiencing.
We offer a variety of services to meet your needs. Our services include installation and maintenance, repairs, and upgrades. We also offer warranty services for all our products. If you ever have any issues with our products, we are here to help and provide the best possible service.
FAQ:
- Q: What is the Brand Name of this product?
A: The Brand Name of this product is KeeTouch. - Q: What is the Model Number of this product?
A: The Model Number of this product is KOT-170P-010(KOT-0170U-CA4P). - Q: Where is the Place of Origin of this product?
A: The Place of Origin of this product is ShenZhen, China. - Q: What Certification does this product have?
A: This product has CCC, UL, FCC, CE, CB, RoHS Certification. - Q: What is the Minimum Order Quantity of this product?
A: The Minimum Order Quantity of this product is one piece.
