Gas Saving BBQ Grill Burners Infrared Catalytic Aluminized Steel For Food Baking
Gas Saving Infrared Catalytic Gas BBQ Grill Burners For Food Baking
Company profile
Established in 2005, Hefei Purple Horn Tech Co., Ltd is specialized in Infrared Catalytic Gas Burner, baby animal heater and BBQ burner, widely applied paint/biscuit baking/animal heating/outdoor bbq etc.
High quality ceramic plaque with rare-earth catalyst, successfully makes our burner heat conversion rate above 95% and 20% gas power be saved than ordinary gas burner, get good reputation from domestic and abroad customers.
Simple & Economic, Energy-save & Environmental friendly burner is looking forward your cooperation.
Description
Specifications
Other models
| MODEL | Dimension | N.W. | Material | Heat Output | Gas Consumption | Application | ||
| mm | kg | BTU/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | |||
| HD220 | 220*170*60 | 0.9 | Aluminized steel, rare-earth ceramic heating part | 10000 | 2520 | 0.31 | 0.22 | bbq grill, shawarma machine, donner roaster, gas stove etc. Heat-resistance glass cover could be supplied |

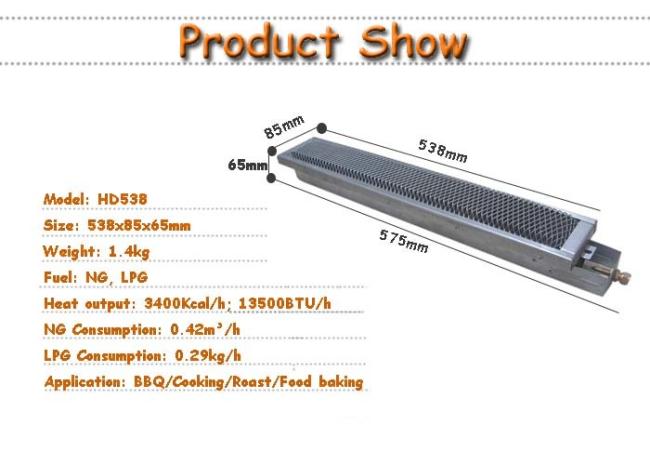

| HD538 | 538*85*65 | 1.4 | 13500 | 3400 | 0.42 | 0.30 | ||
| Purple Horn170 | 170*80*55 | 0.4 | Galvanized sheet,430 stainless steelt, rare-earth ceramic heating part | 3600 | 910 | 0.11 | 0.08 | |
| Purple Horn6 | 345*67*55 | 0.64 | 6090 | 1522 | 0.20 | 0.14 | ||
| Purple Horn021 | 220*170*65 | 0.82 | 10000 | 2520 | 0.30 | 0.22 | ||
| Purple Horn237 | 237*170*75 | 0.8 | 10770 | 2714 | 0.31 | 0.22 | ||
| Purple Horn235 | 235*235*65 | 1.1 | 11542 | 2898 | 0.36 | 0.25 | ||
| Purple Horn310 | 310*310*80 | 1.88 | 20160 | 5080 | 0.62 | 0.44 | ||
| Purple Horn335 | 335*100*65 | 0.95 | Enamel,iron plate | 11780 | 2978 | 0.34 | 0.27 | |
| Purple Horn405 | 405*80*55 | 0.77 | Galvanized sheet,430 stainless steelt, rare-earth ceramic heating part | 8278 | 2065 | 0.24 | 0.21 | |
| Purple Horn530 | 535*93*60 | 1.23 | 12630 | 2986 | 0.37 | 0.30 | ||
| Purple Horn700 | 700*93*60 | 1.5 | 16210 | 4052 | 0.46 | 0.38 | ||
| Other service: ODM | ||||||||
Advantages
♦ Energy efficient, 20% energy can be saved than non-catalytic infrared gas burner
♦ Conveyor rate: above 95%
♦ Reliability, Silent, light and compact
♦ Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦ Low maintenance, just keep the burner surface clean and gas supply normally
♦ Withstands high pressure washing
♦ Long useful time: ≥11000hr
Application
Widely used for kinds of BBQ grill, shawarma machine, salamander, food baking oven etc.
