Economic Catalytic Gas Burner Infrared For Preheat Treatment Booth
Economic Infrared Catalytic Gas Burner For Preheat Treatment Booth
Company profile
As the "Efficiency, Energy saving, Environmental protection" technical characteristics, we successfully developed and produced the industrial infrared catalytic burner, BBQ heating parts, poultry brooder and other related products and accessories. They are widely used in the food baking, industrial painting, glass annealing, low temperature heat treatment, ceramic embryo firing, livestock heating industries.
Description
Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
Specifications
More models
| MODEL | Dimension | N.W. | Material | Heat Output | Gas Consumption | Application | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | |||
| HD41 | 280*80*70 | 3.1 | Cast iron casing, ceramic plaque heating part with catalyst | 2.1 | 1800 | 0.165 | 0.156 | Painting curing/powder coating oven,bakery machine, latex/rubber glove thermalforming, paper/ non-woven fabrics drying |
| HD61 | 423*80*94 | 3.8 | 2.4 | 2030 | 0.18 | 0.17 | ||
| HD82 | 200*164*108 | 4.8 | 3.1 | 2700 | 0.24 | 0.22 | ||
| HD81 | 555*80*115 | 5.8 | 3.1 | 2700 | 0.24 | 0.22 | ||
| HD101 | 690*80*115 | 6.9 | 3.9 | 3380 | 0.3 | 0.28 | ||
| HD162 | 570*130*175 | 5.9 | 2mm galvanized sheet case, ceramic plaque heating part | 6.3 | 5400 | 0.49 | 0.45 | |
| HD162A | 4.4 | |||||||
| HD242 | 840*130*175 | 7.3 | 9.4 | 8120 | 0.75 | 0.68 | ||
| HD242A | 6.1 | |||||||
| HD262 | 930*130*175 | 7.8 | 10.9 | 9360 | 0.8 | 0.74 | ||
| HD262A | 6.6 | |||||||
| Remark: width keep the same, any reasonable length ≤ 930mm could be customized | ||||||||
Material
Combustion plate: covered with rare earth catalyst which can save 20% gas energy, this catalyst only used by us
Brass: nozzle
Venturi tube: cast iron
Shell: 2mm galvanized sheet cast, long term use will not produce impurities and block the hole of honeycomb ceramic plate
System for burner with ignition parts
This system is very popular for industrial oven, it can set temperature as required, when the temperature reach to what you set, it will control the burner off; when the temperature is lower than that, it will control the burner re-work, it can save a lots of gas by this way, and extended service life of burners.
Advantages
♦Energy efficient, as high as 20% gas can be saved
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm; NOx≤10ppm; CHx≤50ppm
♦Low maintenance, usually only need to keep the combustion plate clean
♦ Withstands high pressure washing
♦Flame-out protection device
♦Lifespan: ≥11000hr
Application

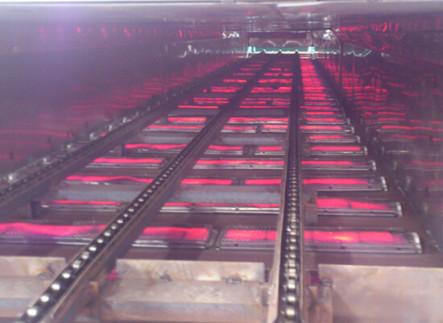

1. Glove thermoforming oven: disposable glove(nitrile, latex gloves) process line etc;
2. Industrial oven: powder coating oven, glove thermoforming line, tunnel oven, curing oven, pre-heat process etc;
3. Food baking oven: Biscuit line, puff food oven, tea drying, vegetable dehydration etc;
Certification
Maintaince
In order to prevent external dust blocked burning plate burner port and prolong service life,
burner must be cleaned with compressed air(P＜2kg) at regular intervals(half a month).
How to do:
1. Blow the ceramic plate in vertical, and then blow inwards from the air pipe.
2. Be careful and avoid blow off the seal rock wool.
3. It’s important to check whether the pipeline leak.
