Catalytic Industrial Infrared Burner HD600 Cast Iron Gas Burner 9.4KW
Cast Iron Industrial Infrared Burner Catalytic Gas Heater For Powder Coating Stove HD600
Product Introduction
Infrared Burner covers a process rare earth as catalyst, make the flamelessburning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.
|
Model |
Dimension | N.W. | Gas Type | Heat Output | Gas consumption | Power |
|
|
mm | kg | Kcal/h | NG LPG | KW | |
|
Purple Horn600 |
600*175*220mm | 10.5 | NG LPG | 8120 | 0.75 0.68 | 9.4 |
product specification
1. Shell Body: Cast Iron,Galvanized Sheet
2. Air blast pipe: Cast Iron
3.Radiant Part: Rare earth ceramic heating part
4. Nozzle: Brass
5.Up cover: Stamped stainless iron
Our Advantage
1.High energy transfer rate:above 95%,other gas burner only 75%-80%
2.High Efficiency:start work in 8 seconds
3.Individual operation:Each burner has individual ignition control system,some problem will not affect other burner’s working
4.IR heating directly : heat direct by Radiant Infrared Ray,no need combusion chamber ,blower
5.Environment protecting: Low pollution

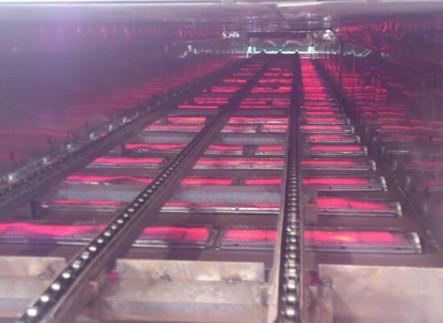

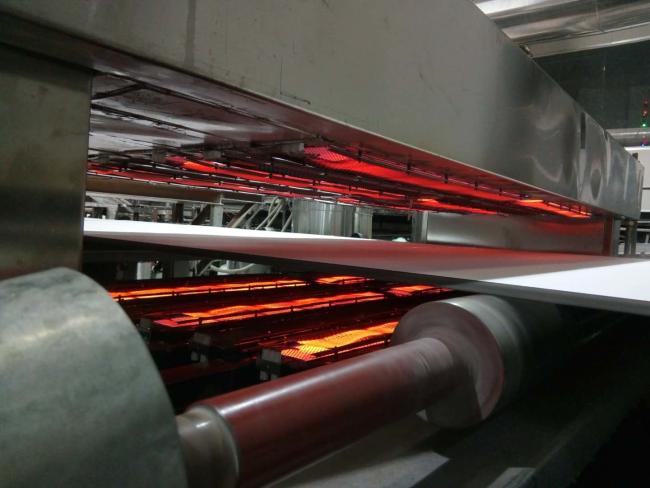

Application
This infrared gas burner fits for: Drying oven - animal foods, cereal and vegetable crops.
Curing oven - dry powder and wet paint coating applications, including stove enamelling and vitreous enamel
Plastic shrink wrapping.
Heat walls - for textile, carpet and paper drying.
Heat treatment ovens.
Our Company
Hefei Purple Horn Technology Co.,LTD is the first one and only one company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 20% energy than non-catalytic infrared heater. Now we are specialized in Gas Burner, Infrared Burner, Gas Heater, BBQ Burner, Bakary Oven Burner, Industrial Burner..
