UH-5075 Series Conveyor Chain Overhead Hanging System 300mm
Overhead hanging system UH-5075 series conveyor chain
Overhead conveyor also known as suspended Chain Conveyor, overhead chain conveyor and overhead conveyor. Suspended conveyor can freely choose the transmission way. The overhead conveyor can effectively utilize space, save manpower and improve work efficiency.
|

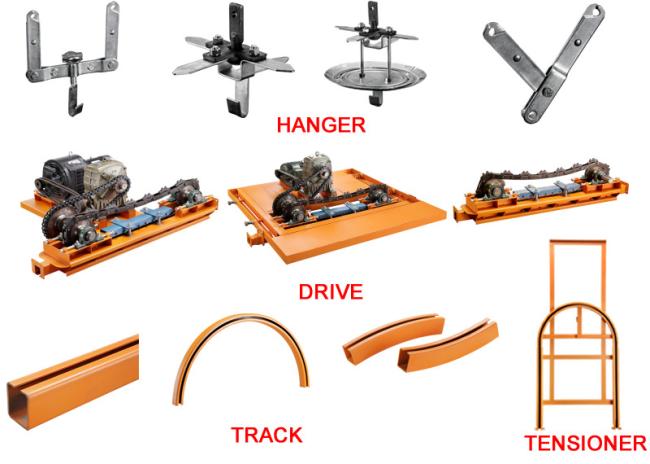

1. The conveyor track adopts 68mm*57mm*4mm carbon steel special track, Turning radius is min R600mm.
|
||||
|

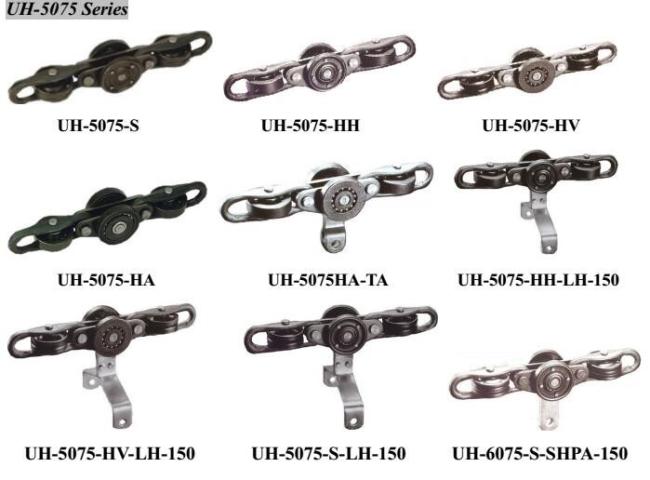

2. The chain pitch is 150mm, the vertical wheel diameter is 45mm, the horizontal wheel is 50mm, the chain plate chain is made of carbon steel, and the chain weight is 4.2KG per meter. The hanger weight is 10-50KGS as different model
|
||||
|
3. The driving belt is made of manganese steel, the driving wheel is 45# steel, the surface is treated with high temperature, and the driving shaft is made of 45# steel.which is very durable and usful
|
||||
|
4. The motor adopts a Chinese brand motor with a speed ratio of 1:40, a power of 1500W, and a frequency of 50HZ.
|
||||
|
5. The automatic chain tensioning system adopts 4 sets of 300KG springs.
|
Overhead hanging system UH-5075 series conveyor chain Application

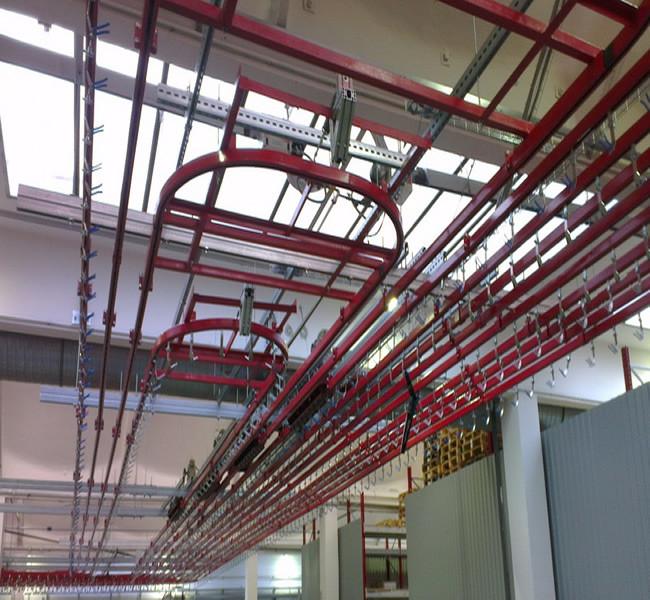

The Overhead conveyor is suitable for baking paint, metal palstic coating, production and assembly lines in factories.It suitable for furniture factories, bicycle factories, electronics factories, plating factories, hardware factories, cowhide products factories, automobile factories, etc. Suspended conveyor is divided into lifting type, pushing type and towing type. For outdoor park for texitile factory which also can use our overhead conveyor chain.
Overhead hanging system UH-5075 series conveyor chain Technical data
- Chain Material:16# Medium-carbon steel, Steel A3
- Track material: Steel A3
- The drive system better to be 5~7 meters after the adjust seat
- If dont move, check if any straight and curve rails; check the motor and chain; check if use high temperature chain lubricant
- If chain fall of the drive, check the driving wheel
![]()
![]()
![]()
