Oil Resistant Two Stage Deviation Switch Deviation Alarm Device

Belt Conveyor Accessories Two-Stage Deviation Switch Deviation Alarm Device

Installation and adjustment of two-stage deviation switch:

1. Fix the offset switch on the bracket, and then install it on the tape machine.

2. The vertical roller line is perpendicular to the belt plane, and the edge distance is L=50~100mm (the shell mounting hole can be shifted).

3. The lower 1/3 of the vertical roller.

4. 3 pairs (6 sets) of deviation switches can be installed per 100m adhesive tape

Precautions for product installation and use:

1. The shell of the product is equipped with a grounding terminal, the user must be reliably grounded when installing and using.

2. Installation site should be free of corrosive toxic gas to aluminum alloy.

3. Maintenance of the product must be carried out in a safe place or only when the presence of combustible dust is confirmed on site.

4. The shell of the pull rope switch must be kept clean and the dust accumulation thickness is not more than 3mm.

Two-stage deviation switch is mainly used in metallurgy, electric power, coal, mining and chemical industry conveyor system, is an indispensable sensor for conveyor automation control, this product can be used for conveyor belt deviation detection, to prevent the belt deviation caused by material overflow and other faults. This product is used in conveyor belt because of convenient installation and switch.

Deviation switch is a kind of protection device which is used to detect the deviation degree of conveyor belt in the running process of belt conveyor, alarm and automatically trigger emergency stop. The use of run off switches can prevent damage to expensive conveyor belts and prevent further industrial and mining accidents and personal injuries. Two-stage offset switch can prevent in the safe operation of the transmission system is an indispensable protection device, which is widely used in steel plants, thermal power plants, cement plants, chemical plants, ports and so on

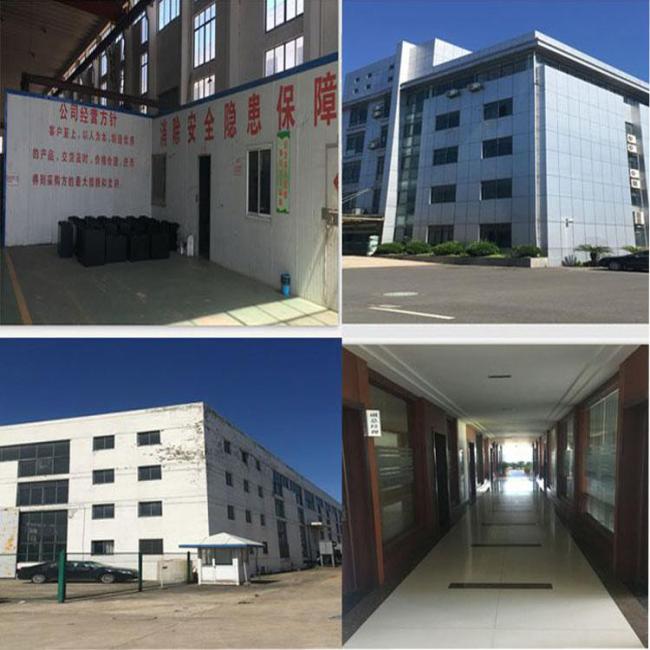

Company Profile

Yixing City Huiyong Machinery Manufacturing Co., Ltd. is located in Yixing city, Jiangsu Province. The company was founded in 2016, covers an area of 15 mu, the standard factory 6000 square meters, the company has 55 employees. Has a large production equipment 12 sets. The company's main business scope; Manufacturing and marketing. Mining machinery, agricultural machinery, general equipment, mining metallurgy, building materials, chemical machinery, transport machinery, import and export business.
Yixing City Huiyong Machinery Manufacturing Co., Ltd. adhering to the quality and service business philosophy, dedicated to provide new and old customers with quality products and services, to meet the needs of customers to the greatest extent. Serve customers and achieve customers. Pioneering and innovative, the pursuit of excellence. Is the constant pursuit of Huiyong machinery.
Our POLICY IS QUALITY FIRST and REPUTATION FIRST. The price is reasonable and the service is good. Provide the most competitive products to win a larger market. If you are interested or interested in any of our products, please feel free to contact us. We look forward to working with our global customers. Create a better future.

Company Certificate

field installation
