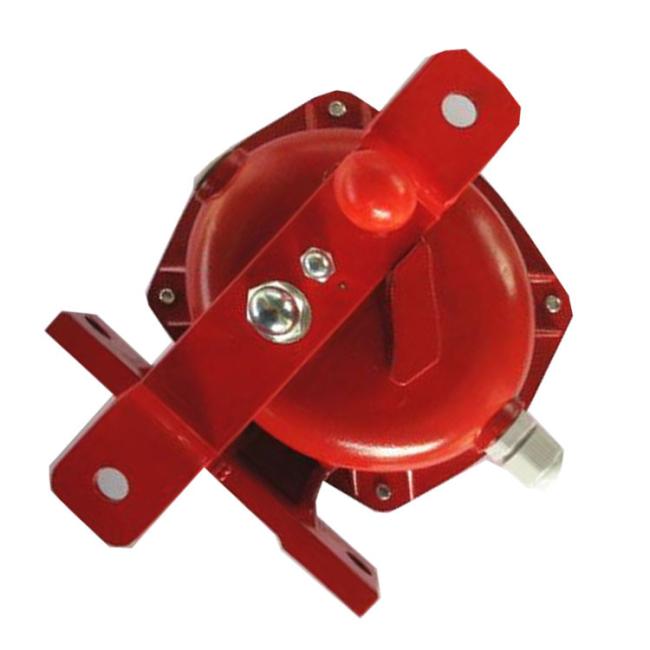

Belt Conveyor Accessories Explosion-Proof Two-Way Drawstring Switch
Belt Conveyor Accessories Explosion-Proof Two-Way Drawstring Switch
Two-way rope switch for belt conveyor, zipper machine, scraper, hoist, scraper and other transmission machinery failure, can be stopped at any position in the equipment.
Two-way pull rope switch can timely protect equipment and personal safety, avoid the expansion of accidents, to ensure production and protect equipment. In addition, because the signal can be sent to the control system, it is convenient to realize the factory automation control, so it can achieve the reduction and efficiency, centralized control, conducive to the purpose of production and scheduling.
use
Two-way rope switch is used in steel, electric power, chemical industry, cement, coal, metallurgy, building materials, mines, ports and wharves, grain warehouses and other industries using conveying equipment.
The characteristics of
Simple and practical structure and performance
Dust, shock and moisture proof
Small size, light weight and long service life
Easy installation and maintenance-free
The output signal can be interlocked with the field equipment and can also be delivered to the automatic control system
Two-way pull rope switch is commonly known as emergency stop switch. Acting on the belt conveyor site need to stop, through the switch action to stop the conveyor. Two-way stretching wire switch is widely used in iron and steel, cement plants, power plants, mining and other factories with belt conveyor, the product is installed on both sides of belt conveyor, is a kind of protection to the belt conveyor emergency switch, the switch operating range any pull rope, cut off the circuit operation makes all downtime, realize the tape machine and personal safety protection, It separates the dynamic type and the automatic type, the manual type after the action of self-pin, and a warning sign shows that manual reset is required. Automatic type automatic reset, when the emergency happens any pull rope sensing gas can stop.
| product name | Belt Conveyor Accessories |
| color | red |
| product type | switch |
| shell material | cast aluminium |
| Rated Voltage | 380V |
| Temp | -30+75℃ |
| Rated Current | 15A |
| Weight | 2.5kg |

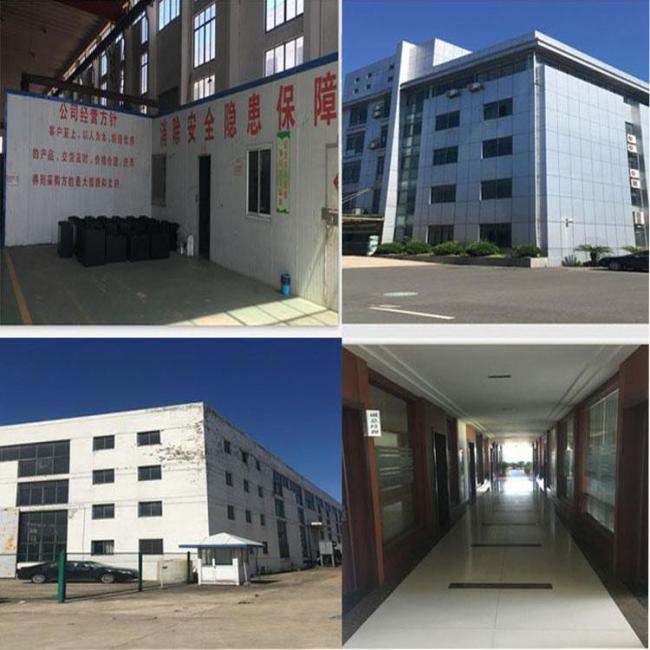

Company Profile
Yixing City Huiyong Machinery Manufacturing Co., Ltd. is located in Yixing city, Jiangsu Province. The company was founded in 2016, covers an area of 15 mu, the standard factory 6000 square meters, the company has 55 employees. Has a large production equipment 12 sets. The company's main business scope; Manufacturing and marketing. Mining machinery, agricultural machinery, general equipment, mining metallurgy, building materials, chemical machinery, transport machinery, import and export business.
Yixing City Huiyong Machinery Manufacturing Co., Ltd. adhering to the quality and service business philosophy, dedicated to provide new and old customers with quality products and services, to meet the needs of customers to the greatest extent. Serve customers and achieve customers. Pioneering and innovative, the pursuit of excellence. Is the constant pursuit of Huiyong machinery.
Our POLICY IS QUALITY FIRST and REPUTATION FIRST. The price is reasonable and the service is good. Provide the most competitive products to win a larger market. If you are interested or interested in any of our products, please feel free to contact us. We look forward to working with our global customers. Create a better future.
Company Certificate

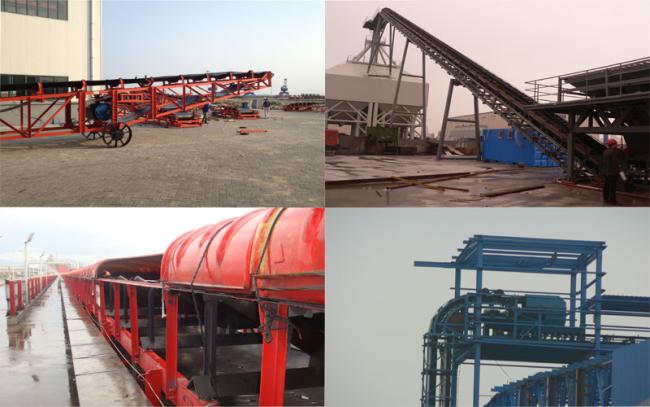

field installation
