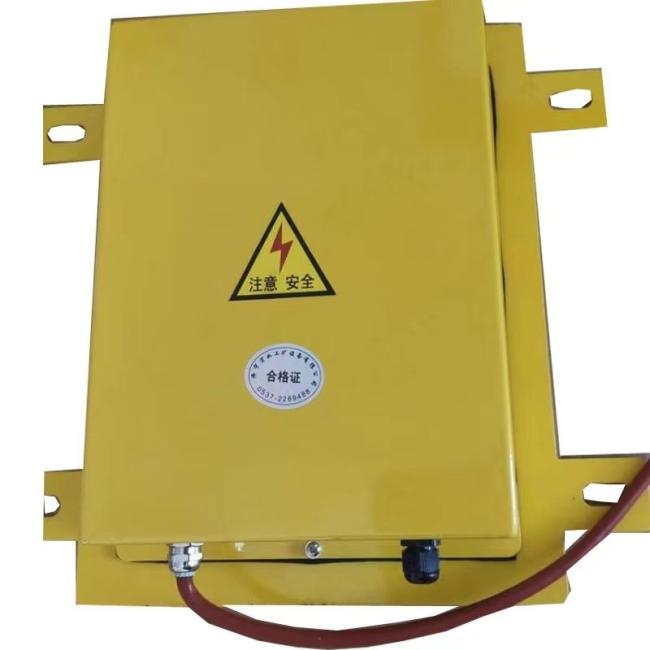

LDM Belt Conveyor Accessories Safety Guard Chute Blockage Detection Device

Belt Conveyor Accessories LDM Chute Blockage Detection Device Safety Guard

Conditions of use:

1. Elevation at 2000m

2, the ambient temperature :-35℃~+50℃

3, relative humidity: no more than 95%

4, atmospheric pressure :80~110Kpa

5, working position: installed in the chute is not affected by the material impact on the side wall

Working principle:

The device adopts door structure, spring reset, installed on the chute side wall. When the material causes blockage in the chute, the accumulated material must give the chute side wall a pressure, so as to move the movable door of the device inward. When the adjustable door deflection Angle is greater than the controlled Angle, its control switch action, so as to send out an alarm or stop signal. If it is connected to the vibrator control line, it can realize the function of automatic vibration without stopping when mildly blocked. After the blockage fault is removed, the trapdoor automatically resets.

Conditions of use:

1. Elevation at 2000m

2, the ambient temperature :-35℃~+50℃

3, relative humidity: no more than 95%

4, atmospheric pressure :80~110Kpa

5, working position: installed in the chute is not affected by the material impact on the side wall

Plug detection switch squeeze trapdoor

LDM Z chute blocking switch for chute mouth plugging material detection, also calls the chute plugging material detection switch, also is a kind of protection device of the chute, the device adopts non-contact and make full use of the function of PLC control, can realize the monitoring of chute blocking, prevent the occurrence of congestion, and to achieve the protection of upstream chute related equipment. In addition, the practical baffle can be installed in the appropriate position of the chute according to different field conditions and different prevention requirements when applied, so the application is flexible and simple.

Main technical indicators

Type of LDM - Z

Number of contacts normally open 1 normally closed 1

Contact capacity AC250V

Working Angle ≥7°

Limit Angle of 30 °

Structural form door type structure compression spring reset

The main purpose

The blocking switch HQDMⅡ is suitable for detecting the chute blockage fault in the belt conveyor transportation system. When the chute is blocked, the detector will give an alarm, vibration or stop signal to prevent the material from blocking the chute caused by the malignant accident.

Conditions of use

1. Elevation at 2000m

2, the ambient temperature :-35℃~+50℃

3, relative humidity: no more than 95%

4, atmospheric pressure :80~110Kpa

5, working position: installed in the chute is not affected by the material impact on the side wall

The working principle of

The device adopts door structure, spring reset, installed on the chute side wall. When the material causes blockage in the chute, the accumulated material must give the chute side wall a pressure, so as to move the movable door of the device inward. When the adjustable door deflection Angle is greater than the controlled Angle, its control switch action, so as to send out an alarm or stop signal. If it is connected to the vibrator control line, it can realize the function of automatic vibration without stopping when mildly blocked. After the blockage fault is removed, the trapdoor automatically resets.

Company Profile

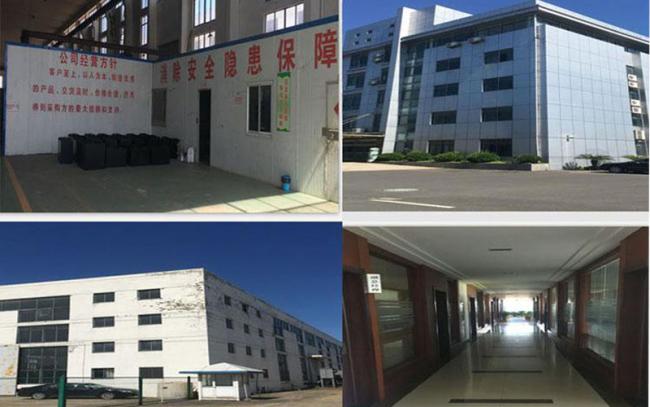

Yixing City Huiyong Machinery Manufacturing Co., Ltd. is located in Yixing city, Jiangsu Province. The company was founded in 2016, covers an area of 15 mu, the standard factory 6000 square meters, the company has 55 employees. Has a large production equipment 12 sets. The company's main business scope; Manufacturing and marketing. Mining machinery, agricultural machinery, general equipment, mining metallurgy, building materials, chemical machinery, transport machinery, import and export business.
Yixing City Huiyong Machinery Manufacturing Co., Ltd. adhering to the quality and service business philosophy, dedicated to provide new and old customers with quality products and services, to meet the needs of customers to the greatest extent. Serve customers and achieve customers. Pioneering and innovative, the pursuit of excellence. Is the constant pursuit of Huiyong machinery.
Our POLICY IS QUALITY FIRST and REPUTATION FIRST. The price is reasonable and the service is good. Provide the most competitive products to win a larger market. If you are interested or interested in any of our products, please feel free to contact us. We look forward to working with our global customers. Create a better future.

Company Certificate

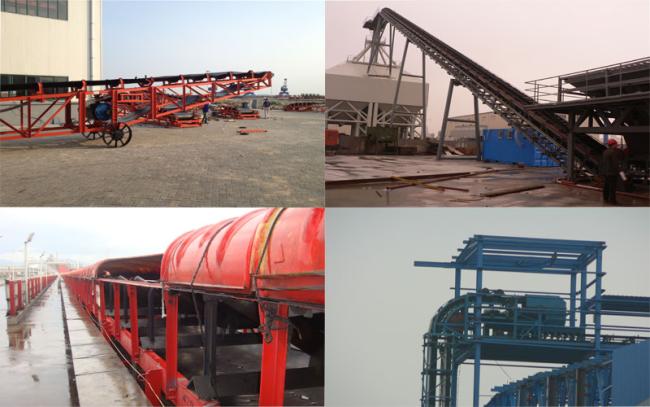

field installation
