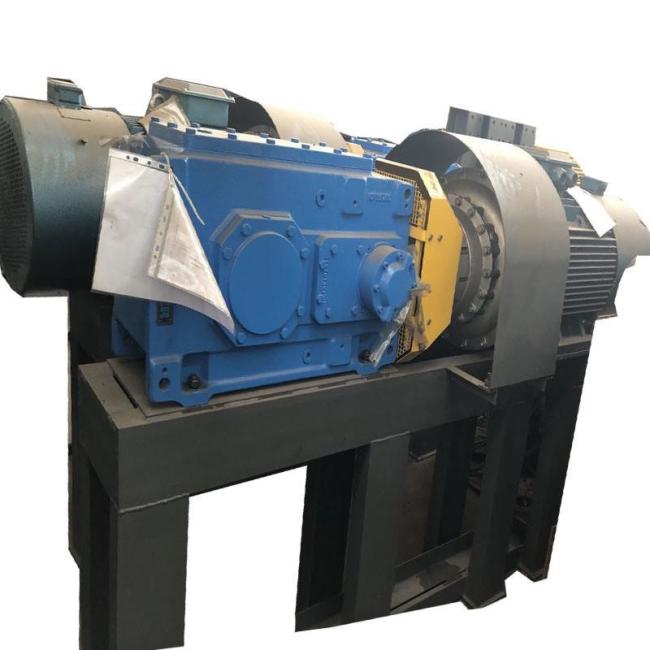

Integrated Conveyor Speed Controller Moulded Screw Conveyor Gearbox

The new integrated reducer includes a motor and a reducer, the end of the motor rotor shaft extends into the reducer enclosure, the reducer gear includes an inner ring body, an outer ring body and a shock absorbing block; The oil collecting device comprises a ring pipe body and an oil storage chamber, and the lubricating oil circulating cooling device comprises an oil pump and a radiator; The rotor shaft of the motor extends directly into the casing of the reducer and the cylindrical gear transmission mechanism meshing transmission, the reducer structure is simplified, the reducer volume is smaller, the structure is more compact; The damping of gear is realized by the damping block, which can reduce the meshing noise. Moreover, the oil collecting device will bring the lubricating oil to the gear meshing area to lubricate the gear, which can improve the lubrication and cooling effect of the gear. The lubricating oil pump will be cooled by the lubricating oil circulation cooling device, which can avoid the technical problem of the temperature rise of the lubricating oil; And through the automatic exhaust valve on the reducer housing can achieve the reducer housing inside and outside the air pressure balance, to avoid the problem of oil leakage caused by air pressure rise.

The machine transmission precision is high, especially suitable for frequent starting occasions, can be connected with all kinds of reducer and configuration of various types of motor drive, can be installed in the 90 degree transmission operating position.

5. The key parts of the reducer motor are made of materials, and after special heat treatment, it has the characteristics of high processing accuracy, stable transmission, small volume, large bearing capacity and long life

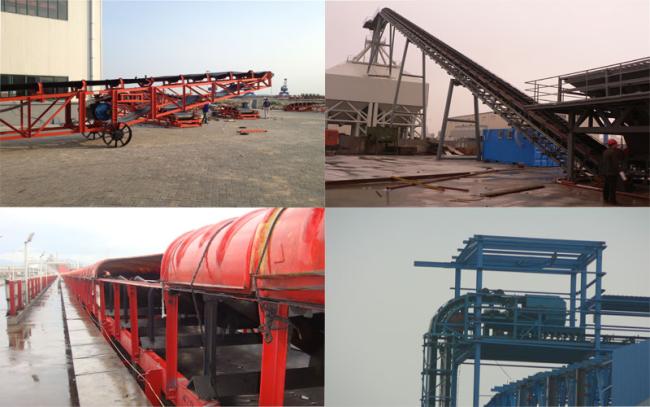

field installation
