Electronic Conveyor Weighing Scale High Precision Sensor Error Small Electronic Belt
Electronic Conveyor Weighing Scale High precision sensor error small electronic belt scale
ICS series electronic belt scale working principle:

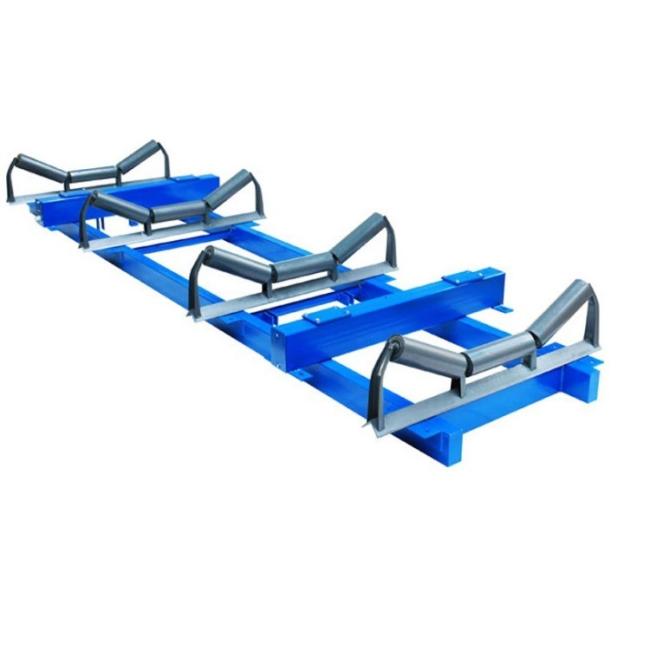

The weighing bridge is installed on the conveyor frame. When the material passes through, the measuring roller detects the weight of the material on the belt through the lever, and is used as the weighing sensor to produce a voltage signal proportional to the load of the belt.
The speed sensor is directly connected to a large diameter velodrome and provides a series of pulses, each representing a belt motion unit, the frequency of which is proportional to the belt speed.
The integrator receives signals from the weight sensor and the speed sensor, and calculates an instantaneous flow value and cumulative weight value through the integrator operation, and displays them respectively.
Main technical parameters of ICS-14
System accuracy :±0.125% Weighing range :0~8000t/hth
Belt width :500~2400mm belt speed :04m/s
Belt conveyor dip Angle :0-10 degrees
Remote transmission :1000m
Model 17A and Model 17B
Belt speed 0.1~4m/s 0.05~4m/s
The standard length of weighing area is 4800mm 2400mm
Belt conveyor dip Angle ≤18 degrees (normal)
Verification accuracy ±0.25% ±0.25%
Weighing range 1 to 6000t 1 to 4000t
Belt width 500~2200mm 300~2000mm
treatment.
| product name | Electronic Belt Scale |
| Origin | Jiang Su |
| Supply Ability | 100 |
| Structure | Roller Conveyor |
| Material | Steel |
| Material Feature | Oil Resistant, Heat Resistant, Fire Resistant, Steel |
| Application | Chemical Industry, Grain Transport, Mining Transport, Power Plant |
| Transport Package | Carton Packing |
Company Profile
Yixing Hui Yong machinery Manufacturing Co., LTD. Is located in yixing city, Jiangsu Province. The company was founded in 2016, covering an area of 15 mu, the standard workshop of 6,000 square meters, the company has 55 employees. It has 12 sets of large-scale production equipment. The company's main business scope; Manufacturing, marketing. Mining machinery, agricultural machinery, general equipment, mining metallurgy, building materials, chemical machinery, transport machinery, import and export business.
Yixing Hui Yong machinery manufacturing Co., Ltd. adhering to the management concept of quality and service, dedicated to provide new and old customers with quality products and services, to the greatest extent to meet the needs of customers. Serve customers, achieve customers. Pioneering and innovative, the pursuit of excellence. Is the continuous pursuit of Hui Yong machinery.
Our policy is to put quality first and credit first. Reasonable price, best service. Provide the best competitive products to win a bigger market. If you are interested or interested in any of our products, please feel free to contact us. We look forward to working with our global customers. Create the future together.
Company Certificate

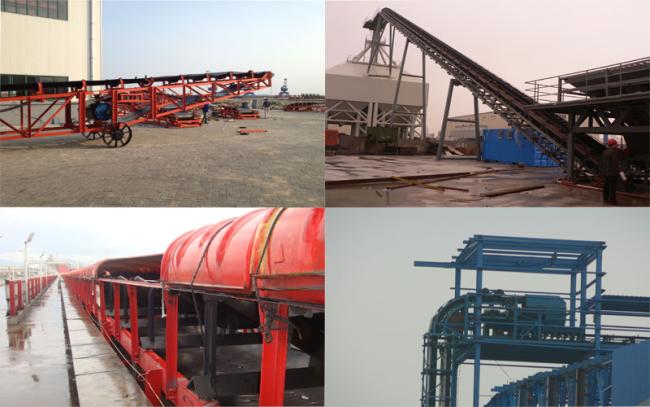

field installation
