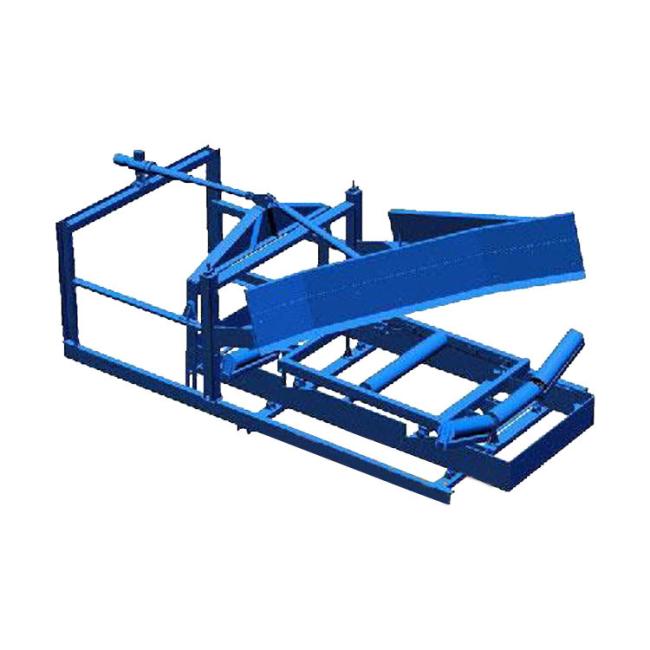

Material V Plough Conveyor Belt Electro - Hydraulic Double - Side Plow Unloader

Product characteristics of plough type unloader

1. Plowshares can be single or double ploughshares.The front plough knife is made of chromium-nickel stainless steel; the rear plough knife is made of polymer polyethylene board. The front and rear plough knives can be replaced. This structure can not only discharge the material cleanly but also protect the tape.

2. Ploughshare locking devices have been significantly improved.The lock is reliable, the plow head will not lift or shake when working, and the plow head height can be adjusted to the appropriate position close to the belt, no material leakage phenomenon.

3. The driving device adopts electro-hydraulic push rod.Real mechanical and electrical integration, the circulating oil circuit is fully sealed structure, can adapt to the harsh environment work, according to the needs of users can provide flashlight double-faced electro-hydraulic push rod or mechanical self-locking type electro-hydraulic push rod.

4. The deformed idlers are used to synchronize with the electro-hydraulic push rod working machinery. The push rod works in a working cycle, and the deformed idlers complete the automatic transformation from groove shape to flat shape and then to groove shape.

5. The motor protection level is determined according to the environment. IP54 motor is used in flammable and explosive conditions.

Unloader product parameters

Applicable medium Applicable temperature medium flow rate

Crystalline material, solid particle material, powder material ≤300ºC ≤28m/s

Power supply voltage regulation characteristics electro-hydraulic push rod model

Easy to use single plough unloader electro-hydraulic double-side plough unloader Working principle This machine is combined, with an electro-hydraulic push rod as the power source, electric control box to control the push rod forward and backward, stop action, electro-hydraulic push rod drives the movement of the mechanical part of the unloader. In the working state, the push rod extends to push the connecting rod mechanism to complete the fall of the plow, the variable groove Angle idlers are placed flat, the parallel idlers are lifted up, the belt surface is flattened, the lower plane of the plow is closely fitted with the belt, and the material runs along both sides of the triangular plow until the edge of the belt falls into the funnel on both sides, thus completing the unloading work. When the materials are unloaded and enter the standby state, the electro-hydraulic push rod is retracted to raise the plow to the rated height, and the roller set with variable groove Angle returns to the groove state from the flattening position

Parallel idlers drop away from the belt, and the belt returns to the groove state when conveying materials, so that the materials are concentrated in the concave area in the middle of the belt, so as to ensure the smooth passage of materials. The flip plate of the air lock funnel is ensured to be closed with a counterweight hammer in the unloading state. In the unloading state, when the weight and impact force of the material are greater than the counterweight, the flip plate is opened and the material falls into the funnel along both sides of the plow on the belt, so as to realize continuous unloading. Plough type unloader is suitable for uniform discharge of belt conveyor with bandwidth 500-1800.1800 unloader is specially designed by our company. The electro-hydraulic plough unloader uses the electro-hydraulic push rod as the power source to drive the frame forward, complete the fall of the plough head, and support the flat roller. The lower edge of the plough knife fits with the belt to complete the discharge.After completion, the frame steps back, the plow lifts up, the deformation roller restores the groove shape, the belt restores the groove shape, and the material passes smoothly.

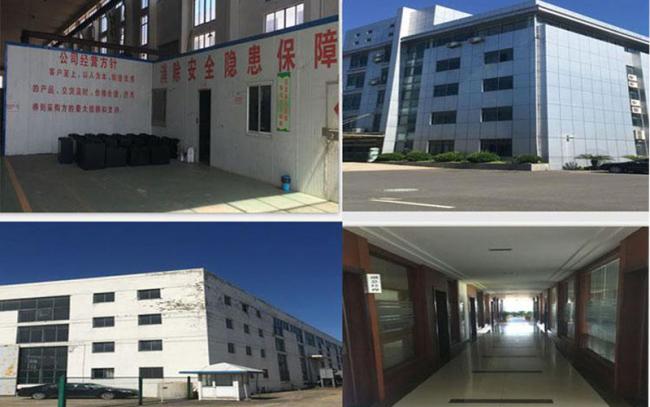

Company Profile
Yixing Hui Yong machinery Manufacturing Co., LTD. Is located in yixing city, Jiangsu Province. The company was founded in 2016, covering an area of 15 mu, the standard workshop of 6,000 square meters, the company has 55 employees. It has 12 sets of large-scale production equipment. The company's main business scope; Manufacturing, marketing. Mining machinery, agricultural machinery, general equipment, mining metallurgy, building materials, chemical machinery, transport machinery, import and export business.
Yixing Hui Yong machinery manufacturing Co., Ltd. adhering to the management concept of quality and service, dedicated to provide new and old customers with quality products and services, to the greatest extent to meet the needs of customers. Serve customers, achieve customers. Pioneering and innovative, the pursuit of excellence. Is the continuous pursuit of Hui Yong machinery.
Our policy is to put quality first and credit first. Reasonable price, best service. Provide the best competitive products to win a bigger market. If you are interested or interested in any of our products, please feel free to contact us. We look forward to working with our global customers. Create the future together.

Company Certificate

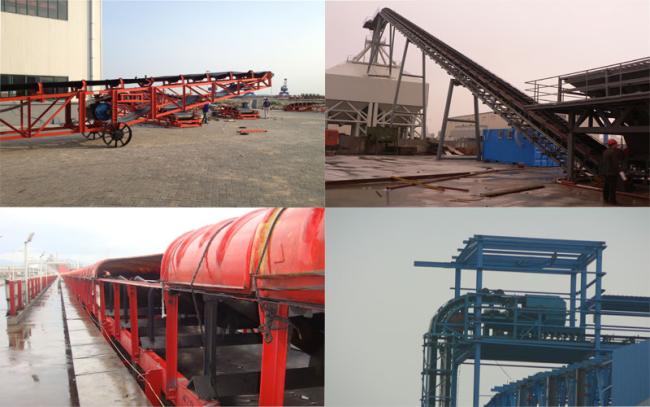

field installation
