CE Cast Iron Round Prestressed Anchorage System Grips Wedge Anchor Head Steel
CE Certificated Cast Iron Round Prestressed Anchorage System for Grips Wedge Anchor Head Steel in Concrete Cable Anchor
Product Description of Flat Anchor
The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strands based on the application of PC strand anchorage in recent 20 years in China. Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head. It has a compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to the 2000MPa PC strands. In addition, the biggest advantage of the anchoring system is that the full length of the PC strand can be fully sealed.
Technical Parameters of Flat Anchor
S2 flat anchor and wedge block for 15.2mm(0.6'') PC Strand.
S3 flat anchor and wedge block for 12.7mm(0.5'') PC Strand.
S4 flat anchor and wedge block for 15.2mm(0.6'') PC Strand.
S5 flat anchor and wedge block for 12.7mm(0.5'') PC Strand.
S5 flat anchor and wedge block for 15.2mm(0.6'') PC Strand.
Flat anchor system parameters
| Model | Flat Anchor Bearing Plate | Flat Metal Ducts Diameter(ID) | Flat Anchor Bearing Plate | Flat Spiral Spring Ring | |||||||
| D | E | F | G | A | C | B | H | I | N | T | |
| BJM15-2QBM | 80 | 45 | 52 | 22 | 140 | 70 | 120 | 120 | 80 | 5 | 45 |
| BJM15-3QBM | 115 | 45 | 65 | 22 | 180 | 70 | 140 | 170 | 90 | 4.5 | 45 |
| BJM15-4QBM | 150 | 45 | 74 | 22 | 170 | 70 | 170 | 195 | 90 | 4.5 | 45 |
| BJM15-5QBM | 185 | 45 | 90 | 22 | 190 | 70 | 190 | 240 | 90 | 4.5 | 45 |
Features of Flat Anchor
1. Including anchor head, anchor wedge, and anchor plate
2. Adopts the ductile iron material, and combines the traditional anchor head and the anchor plate into one, which greatly simplifies the complicated machining process in the previous anchor tool processing
3. The utility model is characterized in that the tension end anchor is integrated with the anchor ring by ductile iron, the structure is compact and the anchoring is reliable.
4. The full length of the prestressing tendon can be completely closed.
5. Flat Shape, Mature Efficiency Design, Straight or Arc shape anchor head available 3, 4, 5 holes available; Well Deburring and Chamfering;
6. Galvanized or Chemical Dioxide Surface Treatment( Black).
Advantages of Flat Anchor
Simple structure, Convenient installation, Good sealing performance, Used for unbonded prestressed building works
Application of Flat Anchor

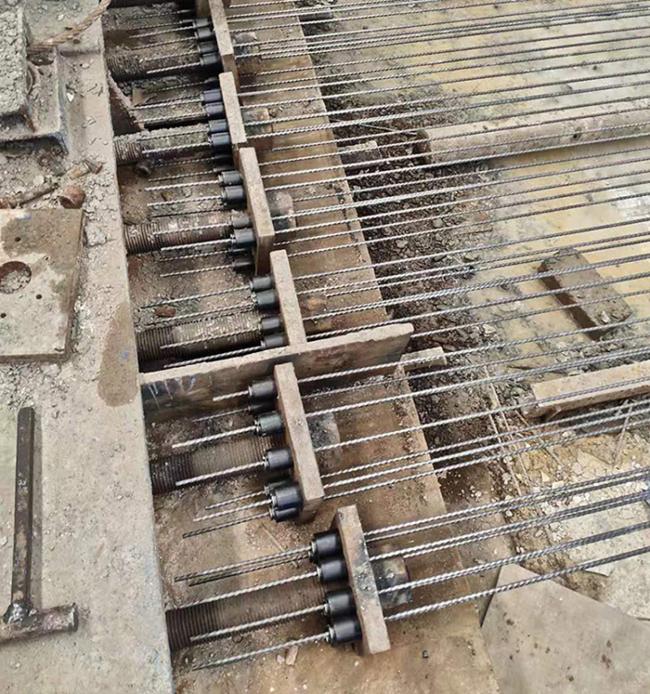

1. Used in pre-tension or post-tension for concrete constructions as building materials.
2. Used in the upper plates of bridges.
3. Used PC panels, high-pressure concrete water pipes, marine structures, towers, and runways.
4. residential buildings, stadiums, coal mines and etc.
