Multi-heads Handheld Pneumatic Single Head Chisel Head

Description of Concrete Floor Scrabbler

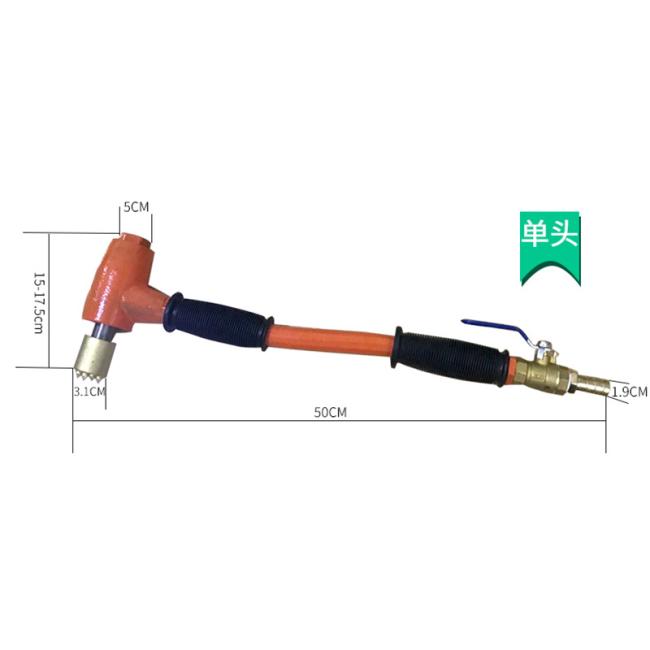

Chiseling machine for concrete ground bridge tunnel walls, hand-held pneumatic chiseling machine, with a single head, double head, and three heads chiseling hammer, the weight is 3/6/9kg, and it needs to use about 1 cubic air compressor to drive, one set The air compressor can drive multiple hand-held chisel machines. The chisel head is made of alloy, with good wear resistance, good hardness, and long service life. Each chisel head has 4 teeth, which are easy to replace and can be directly broken and replaced. The hand-push chisel machine mainly includes electric and pneumatic. The pneumatic style has 7 heads, 11 heads, and 17 heads. The electric style is driven by a 7.5kw motor with a voltage of 380V.

Chiseling machines can be divided into several categories: Pneumatic chiseling machines (hiring machine, chiseling hammer, hammering hammers) and hand-held (one-head, two-head, three-head |). Hand-push type (seven heads, eleven heads, fifteen heads, twenty-three heads) followed by electric chiseling machines (hair pulling machines, milling machines)

Concrete Floor Scrabbler Technical Parameter

Features of Hand-Held Concrete Floor Scrabbler

The hand-held chisel machine cleans high places such as the wall, bridge deck, boat deck, etc. It is simple and labor-saving and has a good shock absorption structure to ensure that the operator can work comfortably. The hand-push chisel is used to remove concrete floors, raised parts of bridges and laitance, hand-push operation, comfort, and efficiency. The chisel head is made of high-hardness alloy, with large impact force, long life, scientific and reasonable structure design, and easy to replace the chisel head.

Application of Concrete Floor Scrabbler

Mainly used in reservoirs, dam leakage, reinforcement of dangerous bridges, power plants, highways, high-speed railways, tunnels and other building reinforcement and concrete chiseling projects. Pre-renovation floor treatment for all kinds of old floors; removal of raised parts of damaged floors; chiseling of epoxy resin floors; non-slip surface on the ground.
