12.7mm Post Tension Steel Prestressed Concrete Sleeves Flat Anchor Head And Wedge

12.7mm Post Tension Steel Prestressed Concrete Sleeves Flat Anchor Head and Wedge

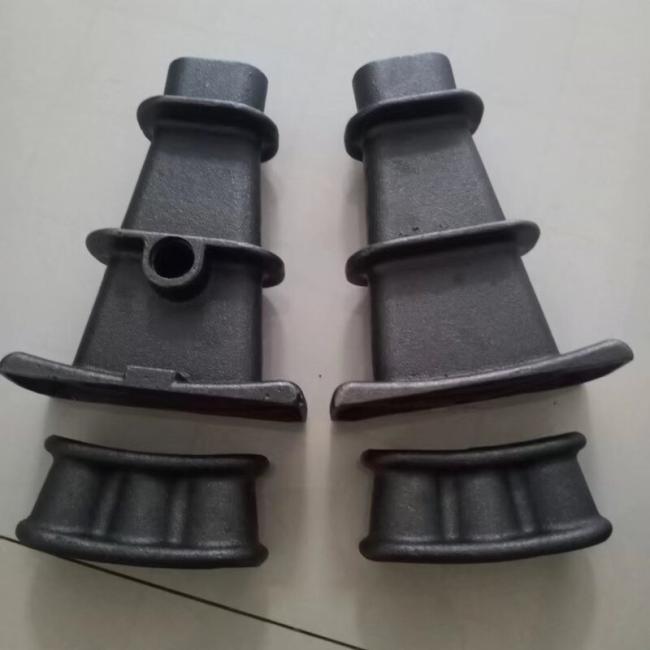

We can produce Round anchorage system, Flat anchor system, Mono-strand anchor, End-stressing anchors and Unbonded strand anchors. For the raw materials, we use 40Cr steel for Anchors block and barrel, 20CrMnti steel as materials for Anchors wedges, Anchors casting's materials is casting iron.

prestressed concrete post-tension flat anchor wedge plate for bridge construction is suitable for steel strands of 2000 mpa or below the strength level. The clamping piece is of two types. In the repeated tensioning process, the clamping pieces are not easy to be cracked. It has a good tensioning performance, high efficiency of anchoring, and a stable anchorage performance.

prestressed concrete post-tension flat anchor wedge plate for bridge construction through strict inspection and testing to ensure the stable quality of qualified, the company established the physical and chemical laboratory, metallographic analysis room, mechanical and physical performance test (including static load, tensile, etc.) of the three departments, ensure that measuring tool instrument can ensure qualified to make test results. Mainly through the following means of control to ensure that.

Application

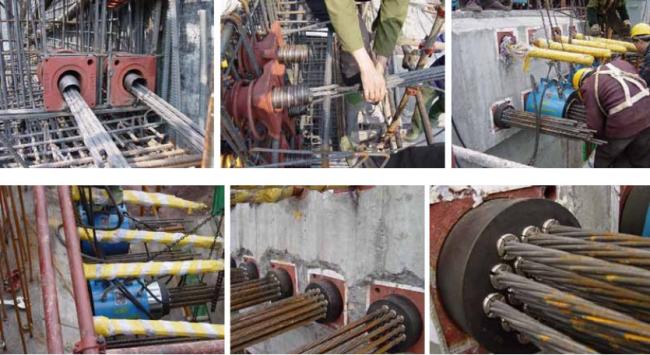

Prestressed anchor is widely used for many fields, for example, bridge construction, railway and highway construction, buildings and channel construction, etc.
The anchor head is the key part of bearing the prestressing tension, The round anchor head is made of 45# high-quality carbon construction steel.
