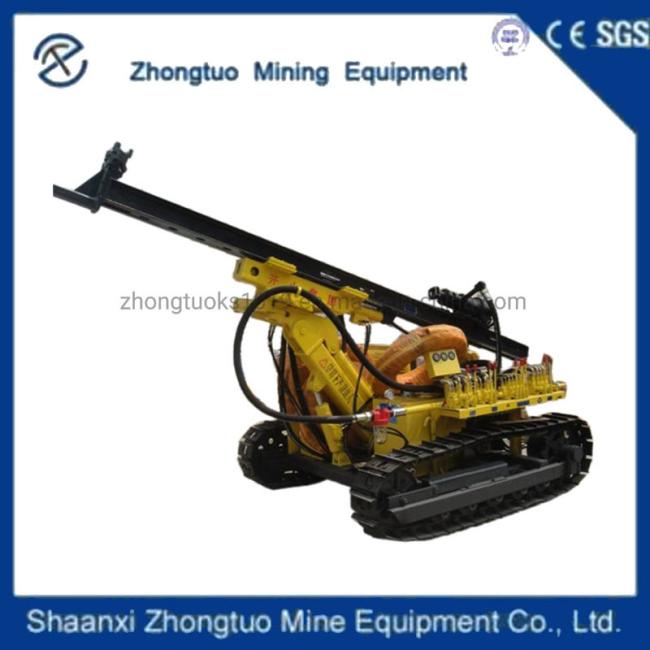

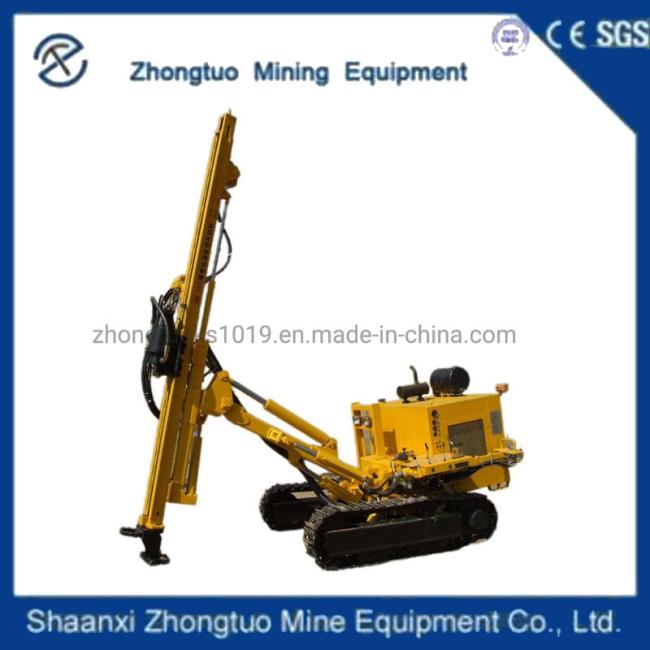

Hydraulic Crawler Drill Rig Rock Drilling for Foundation Engineering

This Hydraulic Crawler Drill Rig Rock Drilling Machine is a top-of-the-line equipment designed for Foundation Engineering Construction Building Road Bridge. It boasts a range of features including drilling rig, Drilling Rigs, Rock Drill, Drill Rig, jack hammer, atlas copco drilling price, air compressor jack hammer, pneumatic hammer, portable drilling rig, drilling machine, machine tool, drill bits, drilling equipment, drilling tool, drilling, drill machine. One of its key features is the low-speed high-torque hydraulic motor drive rotary device which produces the required torque for drilling operations. Additionally, the cylinder promotes a more stable propulsion, resulting in a significantly reduced failure rate compared to motor propulsion. The two-stage filter device ensures the safety of diesel engines and extends their lifespan. Operators can monitor the hydraulic system pressure and push the pressure at any time to ensure that the rig operates stably and efficiently. This Hydraulic DTH Drill is a high-grade rig with a stent-type down-hole drilling rig with excellent performance and powerful features. It is perfect for hydraulic downhole drilling rig, walking downhole drilling rig, and open pit drilling. You can count on our thoughtful service to win your trust and satisfaction.

Description:
1.low-speed high-torque hydraulic motor drive rotary device output torque required for drilling operations.
2.with the cylinder to promote, so that more stable propulsion, failure rate than the motor propulsion significantly reduced.
3.two-stage filter device to effectively ensure the safety of diesel engines to extend the life of diesel engines.
4.can monitor the hydraulic system pressure and push the pressure at any time to ensure that the rig stable and efficient operation.
Thoughtful service to win the trust of customers.

Hydraulic DTH Drill is a high-grade rig with a stent-type down-hole drilling rig with excellent performance and powerful features. Hydraulic downhole drilling rig, walking downhole drilling rig, open pit drill.
pneumatic crawler drill is mainly used for open-pit mine mining, hydropower engineering, road construction and other stone works crawler drilling machine operations..

Parameters:

Models	ZT150	ZT153
Hole depth	30m	40m
Diameter	100~150mm	90-150mm
Feeds stroke	3400mm	3600mm
Lifting Force	26KN	26KN
Machine Weight	6000KG	6300KG
Oil tank capacity	188L	188L
Diesel tank capacity	85L	85L
Working pressure	0.7-2.46Mpa	0.7-2.46Mpa
Gas consumption	9-12m³/min	9-21m³/min
Rotational speed	0-100r/min	0-100r/min
