ZT120 Rock Splitter Machine For Reinforced Concrete Demolition
Introducing the Multi-Holes Rectangle Anchor for Stressing Single PC-Strand. This hydraulic plunger rock splitter is a powerful piece of equipment composed of a high hydraulic pump station and split rod. With a force output of 140-180MP from the ultra-high pressure oil pump station, this device can easily split rocks in a predetermined direction under the 3000t force. It is essential that the hole be straight when punching, and the rod be placed in the hole to ensure an even and achievable blasting effect. This device is perfect for various applications including mining of metal mines, non-metal mines, and coal mines, earthwork excavation works such as roads and bridges, foundations, reinforced concrete demolition, tunneling projects like subways, culverts, mines, underground pipelines, river management, and other projects. This equipment is also ideal for smelting and dismantling work including crushing and dismantling various smelting furnaces. The Multi-Holes Rectangle Anchor for Stressing Single PC-Strand is a reliable and efficient piece of equipment that is perfect for heavy-duty projects.
Product Data
| Model | Length(mm) | Piston | Plunger | Hole | Extension | Weight(kg) |
| Quantity | Diameter(mm) | Diameter(mm) | Length(mm) | |||
| ZT90 | 650 | 9 | 35 | 87 | 15 | 27 |
| ZT100 | 710 | 8 | 45 | 112 | 25 | 47 |
| ZT110 | 820 | 11 | 40 | 100 | 22 | 44 |
| ZT120 | 770 | 8 | 45 | 122 | 15 | 60 |
| ZT130 | 1006 | 10 | 45 | 130 | 23 | 97 |
| ZT150 | 960 | 8 | 50 | 153 | 33 | 118 |
| ZT170 | 1004 | 8 | 60 | 174 | 34 | 166 |
| ZT200 | 1285 | 8 | 70 | 200 | 32 | 291 |
Working principle

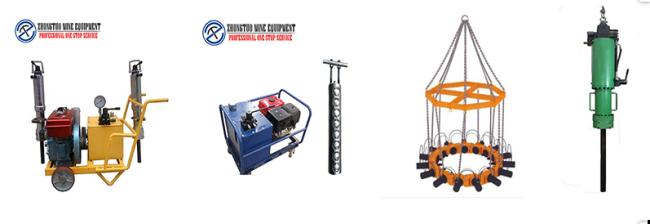

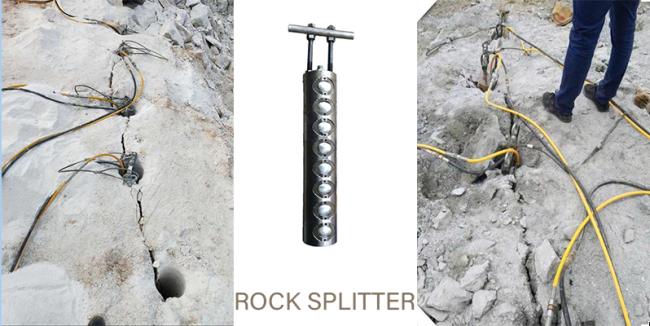

Hydraulic Plunger Rock Splitter is mainly composed of a high hydraulic pump station and split rod. The force output by the 140-180MP ultra-high pressure oil pump station acts on the hole, and the rock hydraulic splitter blasting equipment would split the rock in a predetermined direction under the (3000t) powerful force.
Notice

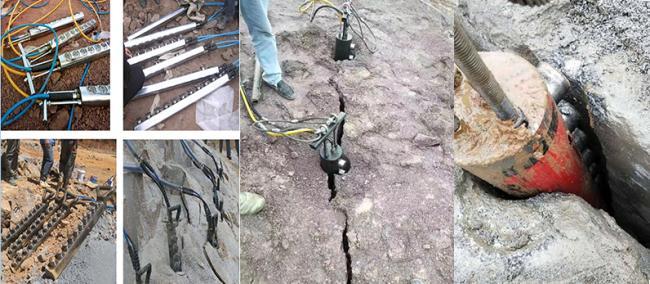

In operation, the hole must be straight when punching, and the rod must be placed in the hole to ensure that the rod cannot be exposed. If not, this would result in uneven force and an unachievable blasting effect. Keep the horizontal plane, be a straight line, and at the same time face the air side.
Application areas:
1. Mining of metal mines, non-metal mines, and coal mines.
2. Earthwork excavation works: roads and bridges, houses, foundations, reinforced concrete demolition, and other works.
3. Tunneling projects: subways, culverts, mines, underground pipelines, river management, and other projects.
4. Smelting and dismantling work: crushing and dismantling various smelting furnaces, kilns, refractory bricks, and carbon blocks.
About the products:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.
Q8: How long will you take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
Why you choose us:

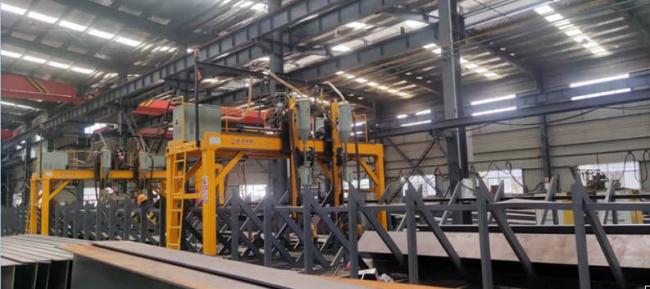

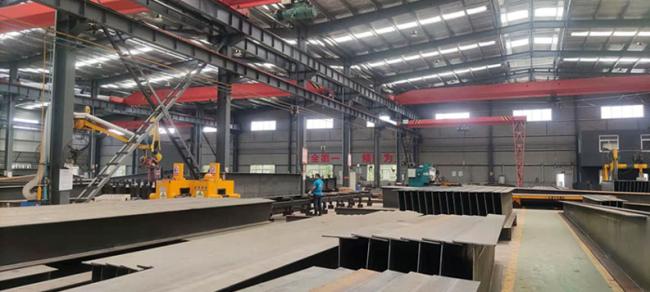

1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
