Lock Nut Hollow Hydraulic Cylinder Jack 5 - 150 Tons Large Tonnage Synchronous Jack

Price Negotiable

Price: negotiable

MOQ: Negotiable

Delivery Time: 1-2 weeks

Brand: ZT

Product Description

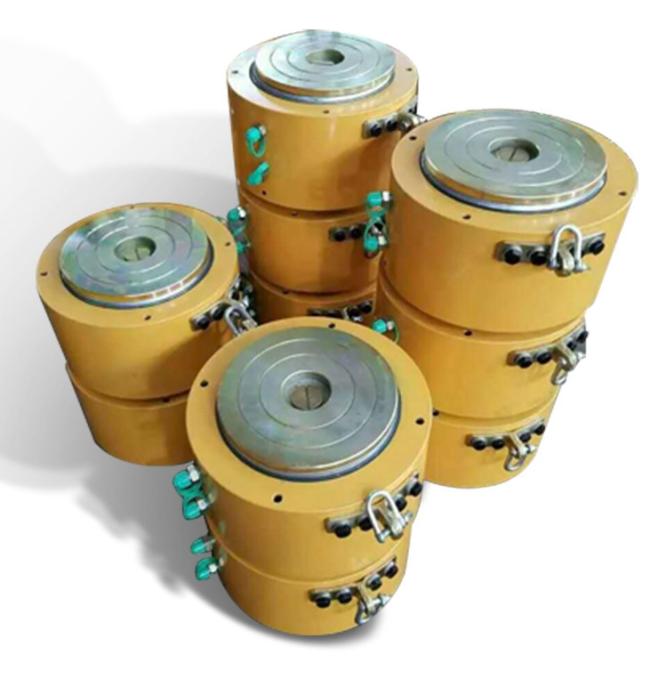

Introduction of lock nut hydraulic jack

Large tonnage synchronous jack jack 5-150 tons.

Hydraulic jack jack jack precise synchronization control.

And fexible lifting, durable, easy to operate and easy maintenance.
Lock Nut Hydraulic Jack In the bridge erection project, an electricpumping station can be 4 to 32 (or more) synchronous jack jack toprovide power, synchronous jacking to achieve the bridge supportpad to install or replace.

Model and specific parameters of lock nut hydraulic jack

Model	tonnage on	Stroke mm	Body height mm	Stretch height mm	Cylinder outside diameter D(mm)	Weight Kg	Maximum working pressure Mpa(bar)
DS-50×4	5	6.35	40	46.35	64×52	1.0	40(400)
DS-100×4	10	11.2	48	59.2	83×66	1.4	63 (630)
DS-200×4	20	11.2	56	67.2	100×84	3.1	63 (630)
DS-300×4	30	12.7	66	78.7	128×105	4.5	63 (630)
DS-500×4	50	16	75	91	145×128	6.8	63 (630)
DS-750×4	75	16	86	102	188×158	11.4	63 (630)
DS-1000×4	100	16	96	112	208×182	14.5	63 (630)
DS-1500×4	150	16	106	122	250×220	26.3	63 (630)

Hydraulic Strand Jacks-Heavy Lifting done Safely.

Strand Jack Lifting Sequence:The sequence of operation is illustrated with the lock devices shown inred when the wedges are closed. The lock devices are shown in bluewhen the wedges are open.
