BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump
Price:
negotiable
MOQ:
1 set
Delivery Time:
1 week
Brand:
ZT
Product Description
Product Description

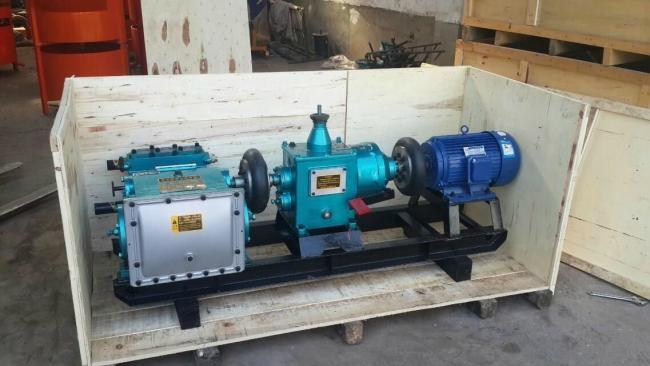

BW Series Slurry Pump is one of the principal equipment for geological drilling. It delivers the enough volume circulating mud water of desired characteristic under pressure into the well to bring the rock clastic up to the ground, to cool the drill bit to lubricate the drill tool and protect the wall of the well. So the function of the mud pump affects the efficiency of dilling and safety in production directly.
Technical Data
|
Model
|
Max.Flow
|
Max.Pressure
|
Input Power
|
Suction Pipe Diameter
|
Discharge pipe Diameter
|
Weight
|
Size(mm)
|
|
BW80/3
|
80L/Min
|
3Mpa
|
5.5kw
|
38mm
|
25mm
|
205kg
|
1220*590*550
|
|
BW100/5
|
100L/Min
|
5Mpa
|
18.5kw
|
76mm
|
38mm
|
700kg
|
2250*750*1770
|
|
BW150
|
150L/Min
|
7Mpa
|
7.5kw
|
51mm
|
32mm
|
560kg
|
1840*795*995
|
|
BW160H
|
160L/Min
|
1.3Mpa
|
5.5kw
|
51mm
|
32mm
|
130kg
|
850*600*450
|
|
BW160/10
|
160L/Min
|
10Mpa
|
11kw
|
51mm
|
32mm
|
430kg
|
1450*745*970
|
|
BW200/4
|
200L/Min
|
4Mpa
|
15kw
|
76mm
|
51mm
|
300kg
|
1050*630*820
|
|
BW240/10
|
240L/Min
|
10Mpa
|
15kw
|
51mm
|
32mm
|
430kg
|
1450*745*970
|
|
BW250
|
250L/Min
|
7Mpa
|
15kw
|
76mm
|
51mm
|
650kg
|
1560*995*650
|
|
BW320
|
320L/Min
|
10Mpa
|
30kw
|
76mm
|
51mm
|
720kg
|
1905*1100*1200
|
|
BW350/13
|
350L/Min
|
13Mpa
|
45kw
|
76mm
|
51mm
|
760kg
|
1850*1050*1230
|
|
BW400/10
|
400L/Min
|
10Mpa
|
45kw
|
76mm
|
51mm
|
720kg
|
1905*1100*1200
|
|
BW450
|
450L/Min
|
2Mpa
|
18.5kw
|
89mm
|
51mm
|
540kg
|
1350*820*1040
|
|
BW450/5
|
450L/Min
|
5Mpa
|
22kw
|
76mm
|
51mm
|
520kg
|
1000*995*650
|
|
BW500/10
|
500L/Min
|
10Mpa
|
45kw
|
89mm
|
51mm
|
1200kg
|
1455*890*1230
|
|
BW600/10
|
600L/Min
|
10Mpa
|
55kw
|
89mm
|
51mm
|
1400kg
|
1500*890*1230
|
|
BW750
|
750L/Min
|
6Mpa
|
45kw
|
89mm
|
51mm
|
1400kg
|
1500*890*1230
|
|
BW850/2
|
850L/Min
|
2Mpa
|
37kw
|
127mm
|
64mm
|
1500kg
|
2000*1030*1400
|
|
BW850/5
|
850L/Min
|
5Mpa
|
90kw
|
152mm
|
64mm
|
3100kg
|
3018*1120*2050
|
BW series Mud Pump Advantage
1. Multi-speed shift gears for variable displacement. 2. Lightweight structure, easy to move. 3. Easy to operate.
Product Application
BW series mud pump is widely used to transfer water, mud, and other flushing fluids when drilling in water well, and oil and gas well areas, such as mining, drilling, coal, railway, highway, water conservancy, hydropower, and bridges. It can be also used for high-rise buildings, and foundation reinforcement works.
Contact Us
We have many different models for your option, if you are interested in our mud pump or other related pump, welcome to send inquiry to us.
Before we send quotation, please let me know the following questions:
1. What is the pressure and flow you need? (Or what's your hole diameter and hole depth?)
2. Do you need electric motor driven or diesel engine driven or hydraulic motor driven?
3. If you need electric motor driven, the voltage in China is 3 phase 380V 50Hz, is it ok for you?
Packaging&Shipping
Packaging and shipping
Packaging details:
1. Outer packaging: standard sea export bakelite box;
2. Inner packaging: stretch film, moisture-proof plastic film;
3. Customized according to your requirements.
Shipping
1.Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
2.Shipping: FOB/CIF/DDU quotations are available.
3.Mode of transportation: Logistics; by car; by train; by transportation; by air, etc.
