12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor
Price:
$4.14-$6.98
MOQ:
1PC
Delivery Time:
7-15 days
Brand:
Casun
Product Description
【36SHD4001】2 Phase 1.8 deg Nema 14 Stepping Motor Ultrathin 12.5mm body for Remote Control PTZ
The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
-
Bipolar or unipolar versions available
-
Hybrid stepper construction
-
Available in single or double shaft versions
-
CE and RoHS approved
-
Customizations on request

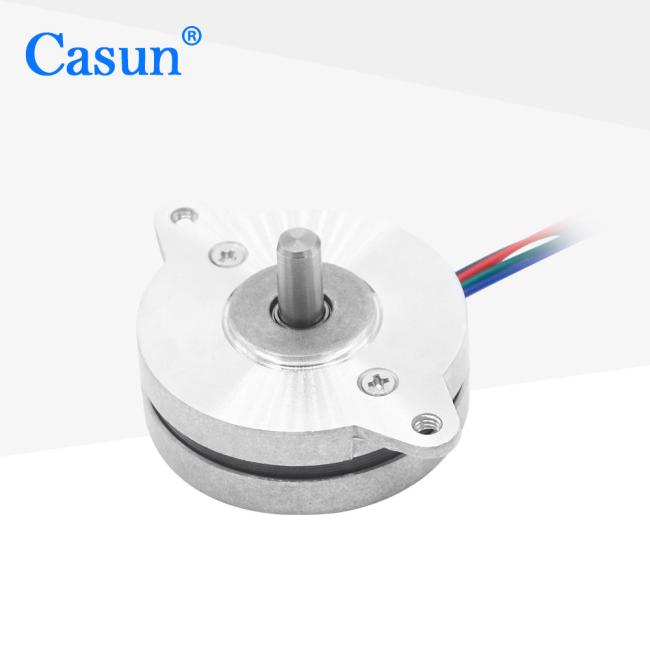

Appearance
Dimensions
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
36 mm |
Number of Phase |
2 Phase |
Rated Current |
0.3 A |
Holding Torque |
22 mN.m |
Resistance |
20 ohm |
Inductance |
6.8 mH |
Rotor Inertia |
4 g-cm² |
Motor weight |
0.06 kg |
Number of leads |
4 |
Connection |
Bipolar |
Torque Curves
Download
If our standard motor cannot meet your needs,
we can customize the motor according to your needs
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Options:
Encoder | Brake | Gearbox | Connector
Please click the "Get a quote" button below to tell us your requirements.
