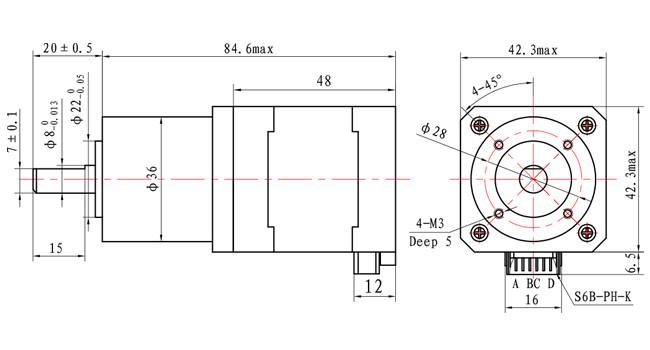

NEMA 17 42*42*48mm Gearbox Stepper Motor 1.5A Gear Ratio 1:19.2

The 42mm deceleration stepper motor is widely used in various industrial applications, such as automation equipment, precision positioning systems, electronic equipment, etc.

The design of the gearbox can improve the durability and reliability of the motor, and extend its service life.

Features:

• Bipolar or unipolar versions available

• We offer customizable services and warmly welcome contract manufacturing

• We possess expertise in drivetrain solutions

• Professional drivetrain solution specialist

• Dealers are actively sought out

Motor Specifications

Operating Specifications

Motor

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft
