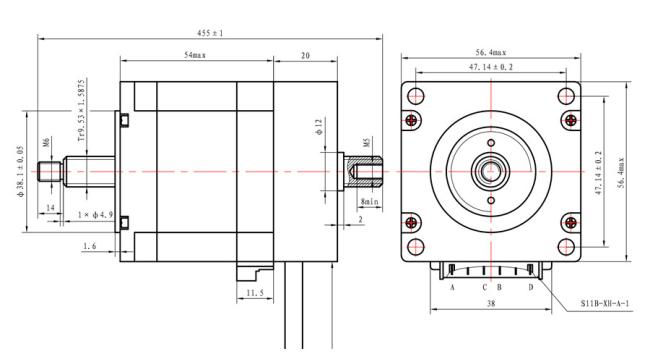

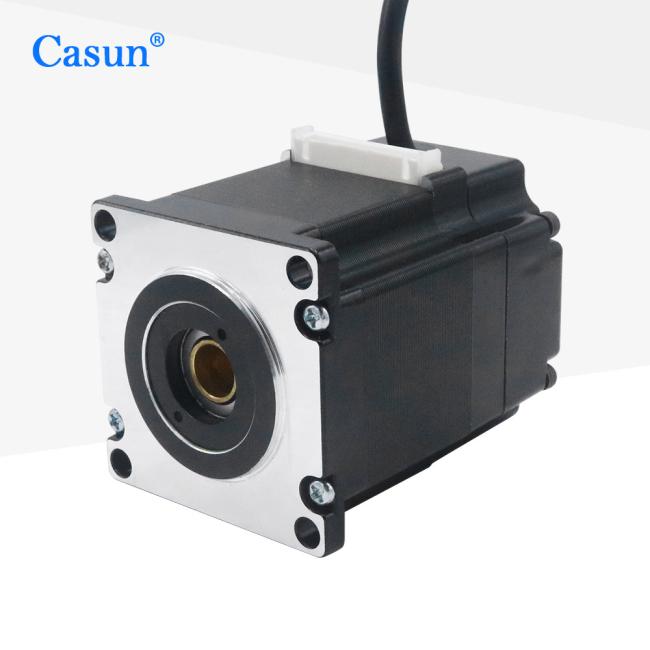

NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw

When encountering sudden load changes, the system can automatically adjust to ensure that the motor continues to work normally.

Through encoder feedback, system debugging and troubleshooting become easier.

Features:

• We offer tailored services and invite contract manufacturing

• Our products offer high torque and precision

• We are looking for dealers!

• We accept contract manufacturing

• Our engineers will contact you within 48 hours to offer the most suitable solution

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
