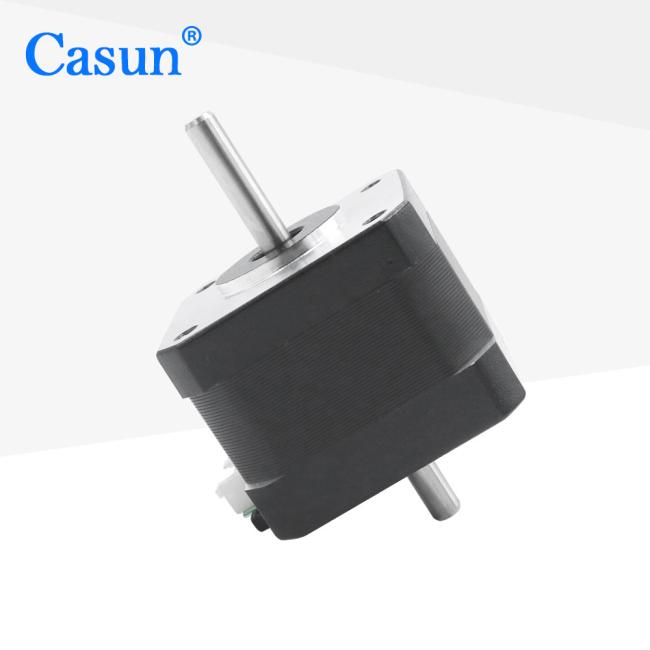

1.8 Degree NEMA 17 Stepper Motor Dual Shaft For Medical Equipment Automation Appliance

Dual axis stepper motors can adapt to various applications, from simple linear motion to complex multi axis motion control.

The dual axis design can better achieve dual axis synchronous control and improve the positioning accuracy of the system.

Features:

• Our engineers will contact you within two days to offer the most effective solution

• Customized service offerings

• Available in single or double shaft versions

• Contract manufacturing is a service we offer

• We specialize in providing professional drivetrain solutions

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
