Stepper motors have strong resistance to power grid fluctuations and electromagnetic interference, making them suitable for use in industrial environments.

In CNC machine tools, stepper motors can achieve precise positioning and fast response, improving the machining accuracy and efficiency of the machine tool.

Features:

• Experts in drivetrain solutions

• Supply various international accreditations for the tech and electronics sectors

• Each model of stepper motor can be suitable for different scenarios

• Dealers are actively sought after

• Our stepper motors are versatile and adaptable to various applications

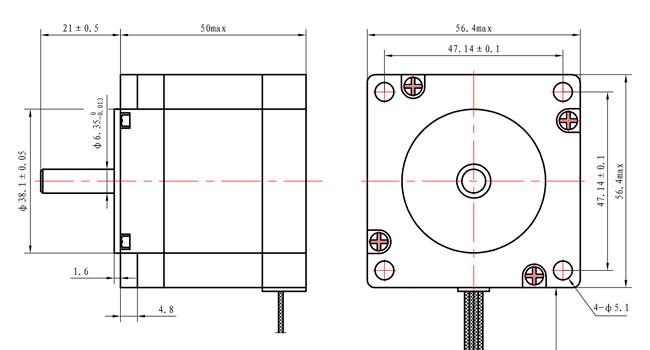

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
