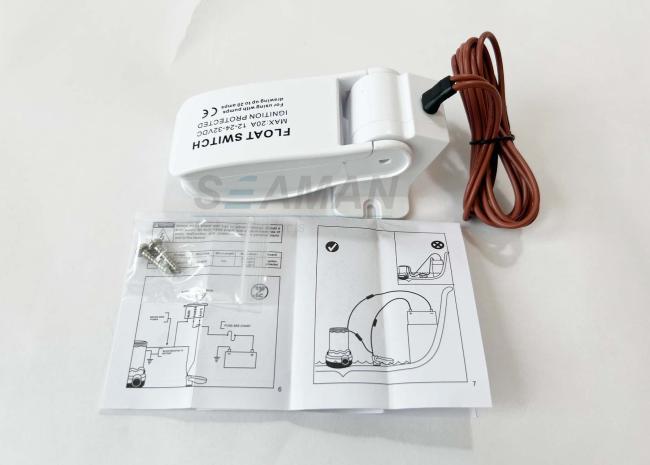

Automatic Marine Bilge Pump Float Switch 12V 24V Or 32V
Boat Bilge Pump Float Switch Automatic 12V 24V or 32V For Boat Yacht Caravan Camping Marine Fishing
A larger float reacts quickly to changes in the water level
Easily separates from the base to clean and maintain
18AWG cable for durability and improved current flow
Capable switching bilge pumps that draw up to 14 amps
Mercury free switching mechanism
| Float switch Feature | Max Amps 12volts | 20A |
| Max Amps 24volts | 10A | |
| Max Amps 32volts | 8A | |
| Wire Length | 1M or customized | |
| Wire Gauge Size | 18 AWG | |
| Water Level Reaches Turn " ON" | 2" / 51mm | |
| Water Level Reaches Turn "OFF" | 3/4" / 20mm | |
| Lifespan | 10 million times | |
| weight | 100g | |
| Dimensions: | 2.36 x 1.18 x 0.79 inches | |
| Application | Agriculture/Yacht/RV/Outdoor Shower/Vehicle-mounted sprayer/Misting system | |
| warranty | Provide 1 year manufacturer warranty | |
Max Amps 12volts: 20A; Max Amps 24volts: 10A; Max Amps 32volts: 8A. Wire Length: 1M; Wire gauge size: 18AWG.
Switch is removable from the base for easy cleaning.
Turn pump on when water level reaches 2” (51mm) ; Turn pump off when water level reaches 3/4” (20mm).
Long life, switching frequency up to 10 million times; Ultrasonic welding, forming a seal, reliable and secure, not leaking.
Heavy duty flow switch is designed for the toughest applications; Environmentally responsible.
