4 Channel Marine Bluetooth Receiver And Amplifier Stereo For Golf Cart ATV UTV
Price:
Negotiable
MOQ:
20sets
Delivery Time:
5-7 work days
Brand:
OEM
Product Description
Marine Waterproof Amplifier and Speaker Package for Boat Car ATV UTV Golf cart RV
Product decription

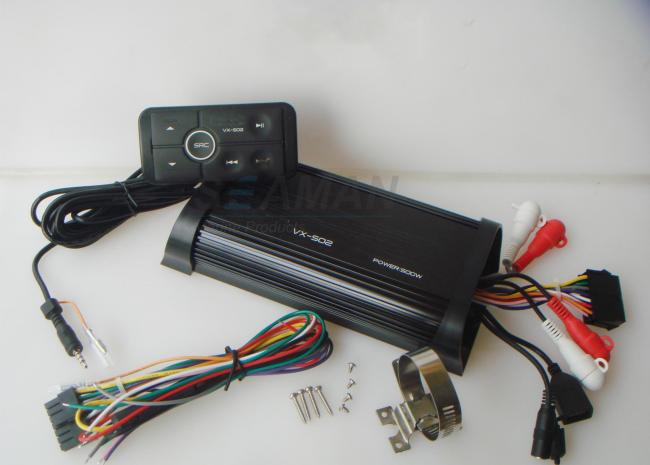

- AMPLIFIER
Channels: 4
MAX Continuous Output: 500W (All channel driven)
PEAK Power Rating
4 Ohm: 125W / channel
RMS Total Power Output: 150W
Class AB
Frequency response: 20-25KHz
4 Ohm stable
Input impedance: 22K Ohm
- CHASSIS
Dimension: W x L x H
99 x 203 x 50 mm
Controller Dimensions W x L x H
47 x 95 x 22 mm
Controller cable length: 5m
Backlight illumination control wire
Quick connect Molex power harness
- GENERNAL
Power source: 14.4VDC (10.8 16V Allowable)
Grounding System: Negative type
Maximum Current Consumption: 15A
3-way protection circuitry (thermal, overload, and speaker short protection)
USB output voltage: 5VDC @1A
Unit weight: 2.08lbs / 0.94kgs
Storage Temperature: 5 F to 113 F / - 15 to 45 degree
Replacement Fuse: 15A - BLUETOOTH
BT: 3.0
BT Range: 33FT / 10 M (CLASS 2)
BT Profiles: A2DP
Specifications:
|
Marine amp Feature |
Channels | 4-CH |
| Class | A/B | |
| Supply Voltage | 10.8-15.6V DC | |
| Media playback | WMA/MP3 | |
| Current Protect | 10 amp 3AG fuse | |
| Audio Output | 4 x 50W P-P | |
| Waterproof | (IP-X6 standard) | |
| Working Temperature | -10 ℃ to + 60℃ | |
| Wired Remote | 3m | |
| Auxiliary | RCA input | |
| LED indicator | USB AUX/Bluetooth modes | |
| USB stick | YES | |
| Line out | 4V P-P | |
| Charge | 5V 1A | |
| Dimensions | L203 x W99 x H51 mm | |
| Accessories | Install Bracket with screws x 1PCS, English Instruction Manual X 1PCS, Retail Box x 1PCS,Antenna 1x 1PCS | |
| warranty | Provide 1 year manufacturer warranty | |

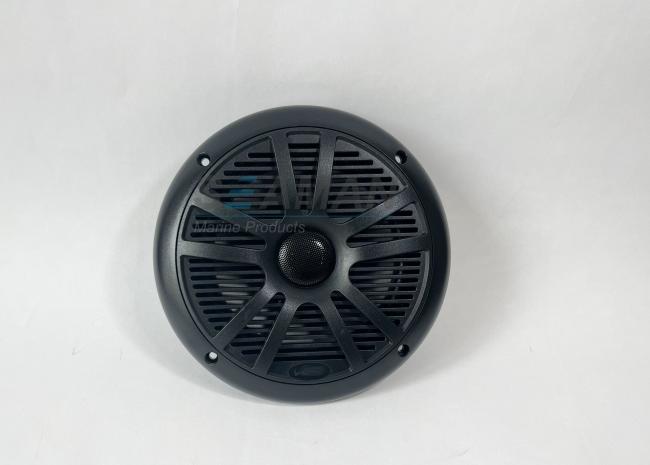

| 6.5" full range Waterproof Speakers | Power: 30*2 Watts Max | |
| Waterproof (IP65)& UV Resistant | ||
| Polypropelyne Cone with Rub ber Edge | ||
| Molded ABS Plastic Basket | ||
| 6.4 Oz Magnet | ||
| Frequency Response:92Hz-16KHz | ||
| Impedance: 4 Ohms | ||
| Sensitivity: 85 dB | ||
| Dimensions(mm) |
D191,d139,H80,h57
|
|
| Accessories | ||
| warranty | Provide 1 year manufacturer warranty | |
