Fused 6 Gang Led Rocker Waterproof Marine Switch Panel Marine Boat ON Off 12v
Price:
negotiable
MOQ:
20 sets
Delivery Time:
5-7 work days
Brand:
OEM
Product Description

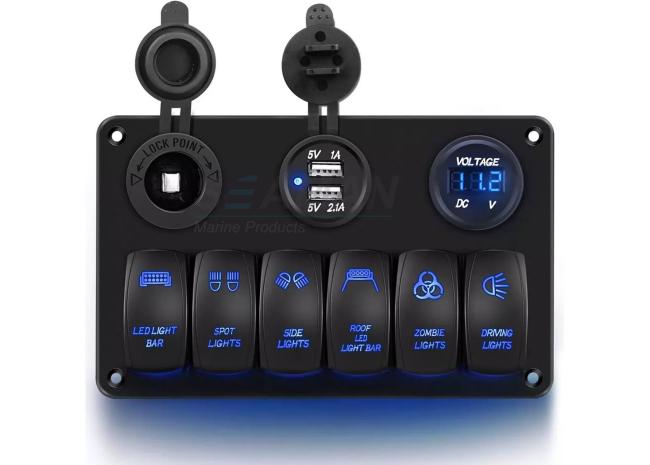

6 Gang ON Off Rocker Switch Panel for Marine Boat RV Truck Yacht
Product Description
Material: ABS, Aluminium Plate
Weight: 457G
Voltage: 12V-24V
Max Output Power: 240W
Overload protection: 12V 20A DC; 24V 10A DC
Operating Temperature: -25 degree to 80 degree
Electrical Life:10000 make and break cycles at full load

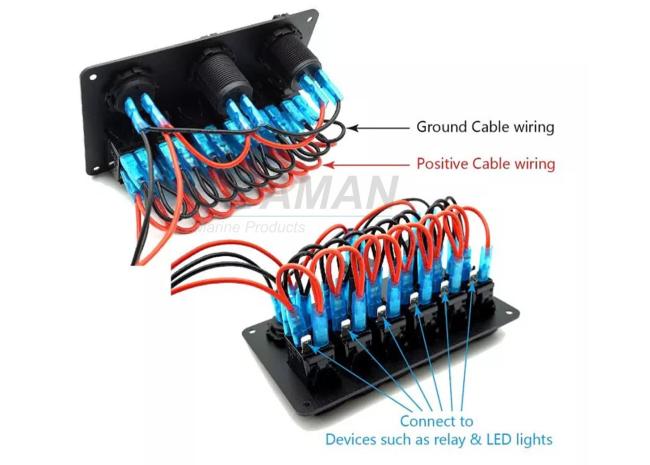

Wiring Connection:
The Red wire: connect the cathode of the storage battery.
The Black wire: connect the anode of the storage battery.
The Blue wire: connect the cathode of the storage battery.
The Yellow wire: connect the anode of the storage battery.
Sheet Copper:connect the load generator.
What is included:

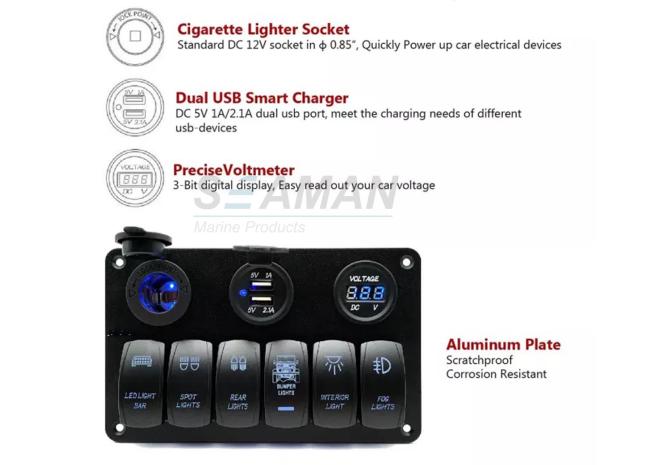

1 x Digital Voltmeter+12V Cigarette Socket +Double USB
Power Charger Adapter Waterproof Flush Mount 6 Gang Rocker Switch Panel
4 x Stainless Steel Screw
Specifications:
| Feather | Material | aluminium for panel ,ABS and copper for other |
| Installation | Pre-wired | |
| Switches Available | 6 rocker switches with voltmeter,Cigarette Lighter and 3.1A dual usb charger | |
| Loop Circuit | ON-OFF | |
| Rating |
DC 12V 20A,24V 10A |
|
| waterproof: | IP65 | |
| LED light | RED OR BLUE OR GREEN | |
| Operating Temperature | -25 degree to 80 degree | |
| Electrical Life | 10000 make and break cycles at full load | |

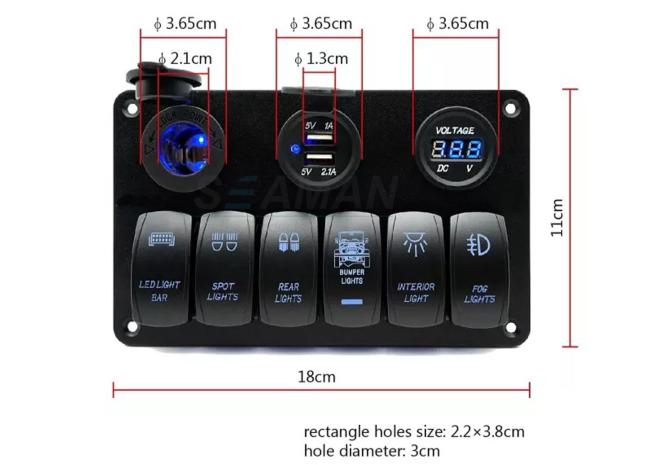

| Dimensions | (Width)180mmx(Height)110mmx(Depth)75mm | |
| warranty | Provide 1 year manufacturer warranty | |
