8 Gang Marine Rocker Switch Panel Boat 12v Dual USB Charger Cigarette Lighter

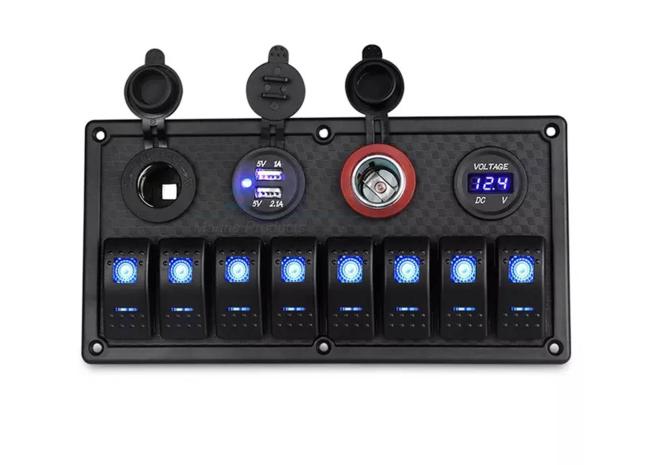

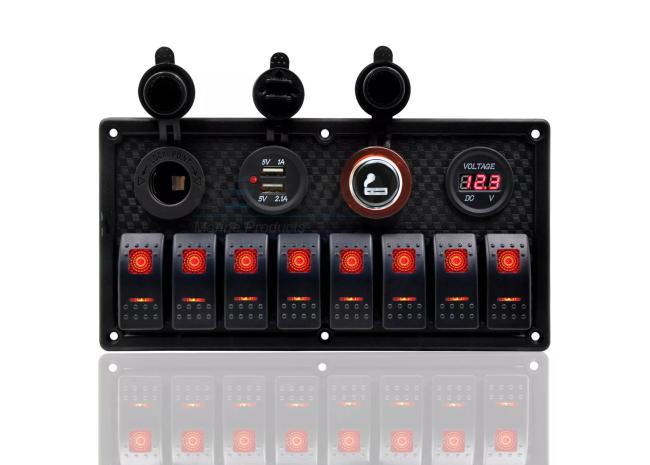

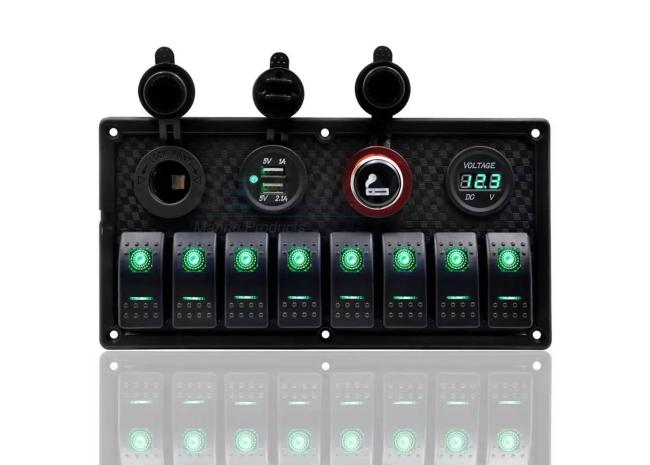

8 Gang Marine Rocker Switch Panel with Voltmeter Dual USB Charger Cigarette Lighter for Car Vehicle Truck Yacht
Product Description
- Multifunction Switch Panel Kit:included 8 on-off 5pin Blue LED rocker switch, 12V Cigarette Lighter Socket Output and Cigarette Lighter, 2.1A/5V & 1A/5V dual usb charger and digital voltmeter, great for all types of circuit control, charging needs and voltage monitoring!
- On-off state of 8 electrical apliance synchronously controlled available, Marine-gradeConstruction and IP65 Waterproof: Scratch-proof and Corrosion Resistant, with rubber sealed cap for all sockets dust-tight and debris-proof

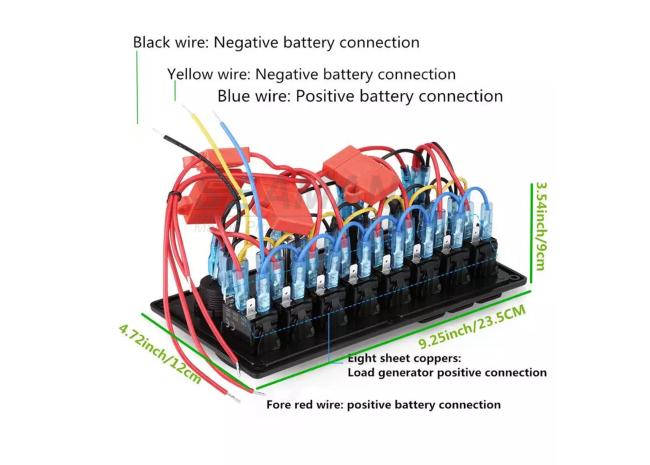

- Four red wires: Connect the cathode of the storage battery,each red wire with fuse control two switch.Operating Temperature:you can even use it at -25°(Min) or 80°(max).. IP65 Waterproof
- Installation is simple and can be mounted horizontally or vertically,Panel comes with pre-wired,wiring instructions. mounting screws and a set of labels;With multi-function stickers for DIY your specific need
- Short circuit/Overheat Protection:built in Overload protection,Suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailer, RV, caravan, bus, marine boat, yacht, airplane, etc.
Specifications:
| Feather | Material | ABS, nylon, aluminum |
| Installation | Pre-wired | |
| Switches Available | 8 rocker switches with voltmeter dual USB port ,Cigarette Lighter | |
| Loop Circuit | ON-OFF | |
| Rating |
DC 12V 20A,24V 10A |
|
| waterproof: | IP65 | |
| LED light | RED OR BLUE OR GREEN | |
| Operating Temperature | -25 degree to 80 degree | |
| Electrical Life | 10000 make and break cycles at full load | |
| Dimensions | (Width)236mmx(Height)120mmx(Depth)58mm | |
| warranty | Provide 1 year manufacturer warranty | |
Specifications:(4/8Key)
Material: ABS, nylon, aluminum
Operating Temperature: -25degree to 80degree
Maximum power: 320W <4key panel>
Maximum power: 360W<8key panel>
Circuit Breakers:15A
Installation: Pre-wired
Rocker Switch: 4/8
Loop Circuit: ON-OFF
Switch System: Water-resistant enclosed Rocker switch
Switch Rating: 12V 20A DC/24V 10A DC
USB Pocket: 2 USB (5V 1A / 5V 2.1A)
Related Certificates: CE / RoHS / UL
Usage: for headlight switch, fog lamp switch, car refrigerator switch, car cleaners switch, horn switch, pump switch
Installation: Suitable for, ships, boats, RVs, buses, etc.
Accessories: Four/Six self-tapping screws
Package included:
1pcs x 4/8 gang switch
4/8pcs x stainless Screws
