12v 6 Gang Waterproof Marine Switch Panel Waterproof Led 6 Gang Rocker Panel

Price Negotiable
Price: negotiable
MOQ: 20 sets
Delivery Time: 5-7 work days
Brand: OEM
Product Description

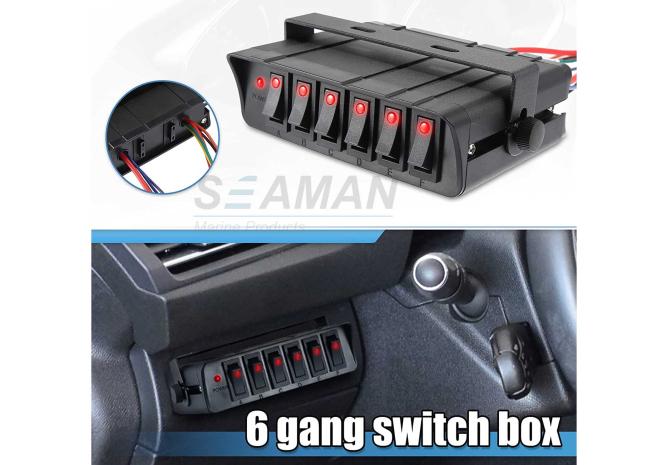

6-Gang On Off Rocker Switch Box for Car Marine Boat RV Vehicle Truck Yacht ATV Campers



Product Description

  • Functions: 6 Gang switch panel can control 6 auxiliary switches at the same time, can be used to control the light bar, fog lights, taillights, work lights, etc., through the red LED indicator, let you know whether the panel switch is working properly, so that you can know the circuit status of each accessory.

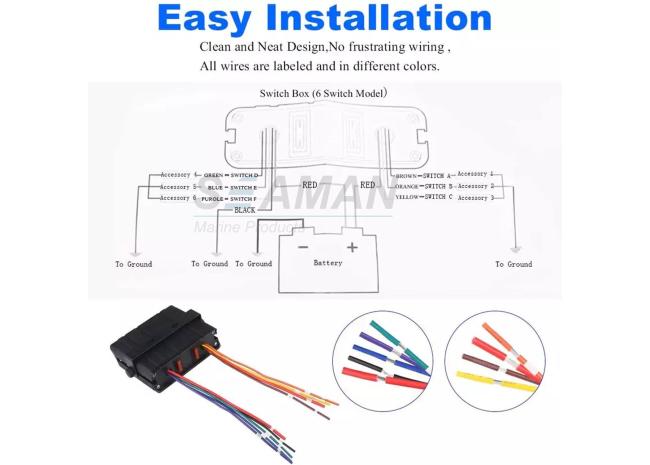

  • Easy to install:Each circuit has only one power supply and ground wire, color coded attachment wire, convenient for you to connect the power supply and accessories respectively, just connect the wire to the power supply and accessories respectively, the connection can be successful, easy to replace.
  • Better protection:With two external 40A fuses provide better protection for the circuit. When the fuse is damaged, it should be replaced in time. The mounting bracket is adjustable, and the Angle can be adjusted according to the need.

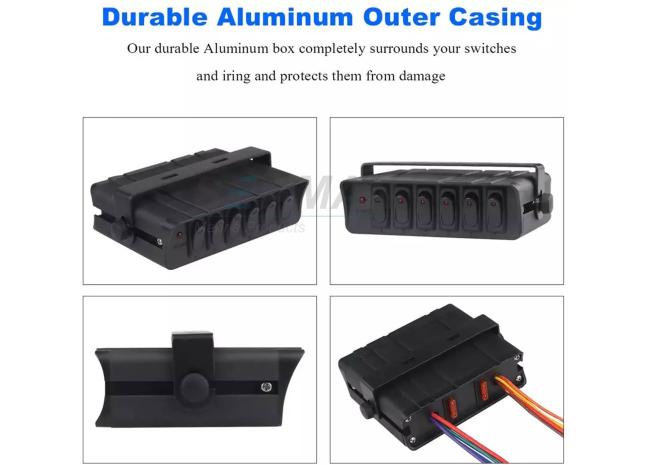

  • Material:Made of good quality material, durable, waterproof and dustproof. The surface is ground design, not easy to scratch, longer service life.
  • Each switch :6 Gang rocker switches control all your lights or any other 12V equipment from this switch box, suitable for cars, UTVs, ATVs, trucks, trailers, trailers, caravans, buses, boats, yachts, aircraft.

Specifications:



Feather Material ABS+PC+Aluminum
  Installation Pre-wired
Switches Available 6-Gang On Off Rocker Switch Box
Loop Circuit ON-OFF
Rating



DC 12V 20A,24V 10A

waterproof: IP65
  LED light RED OR  BLUE OR GREEN
  Operating Temperature -25 degree to 80 degree
  Electrical Life 10000 make and break cycles at full load

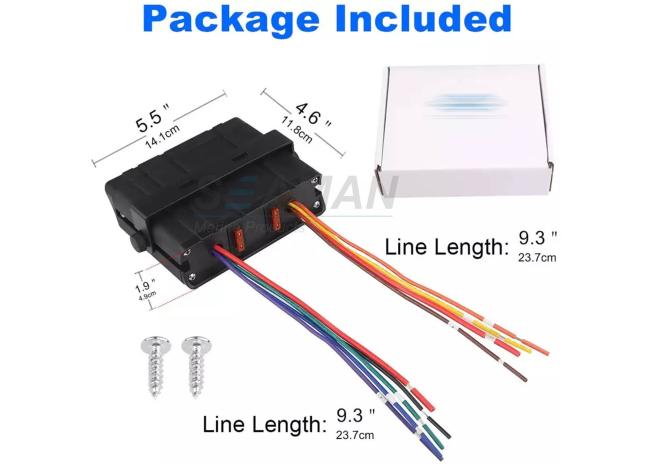

Dimensions   (Width)141mmx(Height)49mmx(Depth)118mm
warranty Provide 1 year manufacturer warranty
