Aluminum Boat Switch Panel Box For Car RV Vehicle Truck Yacht 220mm
Price:
negotiable
MOQ:
10 sets
Delivery Time:
5-7 work days
Brand:
OEM
Product Description
Waterproof Aluminum Rocker Switch Panel box with Dual USB Charger Voltmeter for Marine Car Boat RV Vehicle Truck Yacht
Product Description

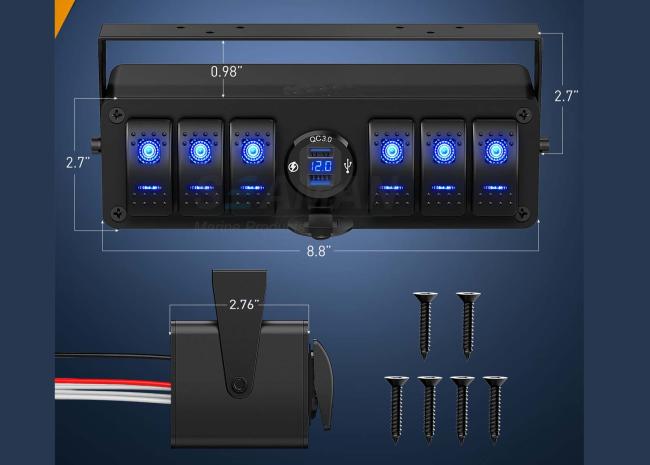

- 【Surface Mount Box】 Now with surface mount enclosure. This allows it to be mounted either on the dash board, under dashboard, or middle console. Application is endless. It's made of powder coated metal box with bracket that can rotate 360 degrees. This gives it more flexibility for different mount locations. Box dimensions are 3.917” x 2.7” x 8.67” (refer to picture above for detail dimensions.)
- 【Quick Charge 3.0】Designed with dual USB ports supporting QC 3.0, whose max single output is 18W. Built-in official Qualcomm smart chip, will intelligently detect your devices and simultaneously charging 2 devices at optimal current. Charge up to 4 times faster than conventional charging. Certified by CE & UL2089 with Over-load, Over-current and Short Circuit Protection to ensure charging safety, meanwhile, built-in Smart IC ensures the circuit won't be burnt out if wrong wiring.
- 【Widely Compalitity】This QC 3.0 USB charger socket fits for 12-24V car, boat, marine, motorcycle, ATV, RV etc. Suitable for charging mobile phone, GPS, digital camera, PDA and other USB accessories, backward-compatible with QC 2.0 &1.0, provides standard charging for non-Quick Charge devices.
- 【LED Voltage Display】 built in digital BLUE LED battery voltage monitor, dispalys the real-time accurate voltage status of your vehicle's battery for preventing problems caused by low voltage, the light also makes quick and easy to find USB ports in the dark or at night,
- 【6 Gang Rocker Switches Panel】These switches are newly design to increase durability. These switches are rated at 10000 on and off cycles without failure. Splash-proof panel face, water resistance caps and anti-seepage rubber ring . BLUE LED light indicator, waterproof board,
Specifications:
| Feather | Material | ABS+PC+Aluminum |
| Installation | Pre-wired | |
| Switches Available | 4-Gang On Off Rocker Switch with Dual USB Charger Voltmeter | |
| Loop Circuit | ON-OFF | |
| Rating |
DC 12V 20A,24V 10A |
|
| waterproof: | IP65 | |
| LED light | RED OR BLUE OR GREEN | |
| Operating Temperature | -25 degree to 80 degree | |
| Electrical Life | 10000 make and break cycles at full load | |

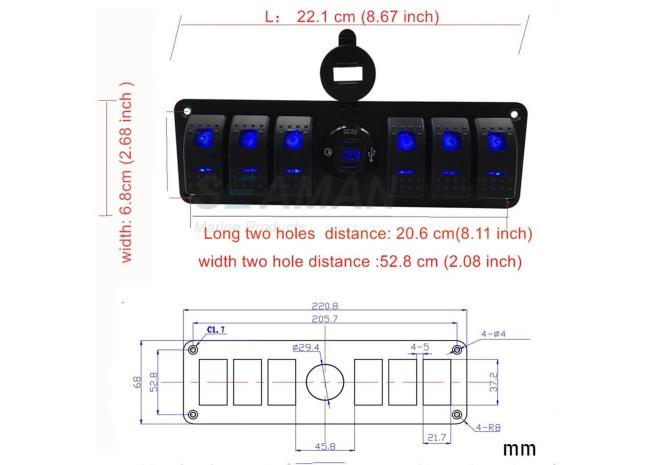

| Dimensions | (Width)220mmx(Height)68mmx(Depth)70mm | |
| warranty | Provide 1 year manufacturer warranty | |
