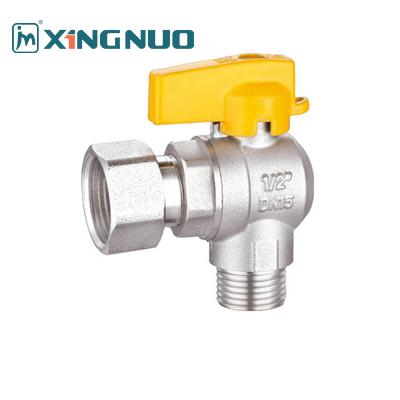

Male And Female Threaded Gas Valve AV1007-MF M1/2" X F3/4" Nut PTFE Male X Revolving Female
Brass AV1007-MF Male x Revolving Female Nut M1/2" x F3/4" Ball Valves
Specification
- forged brass body
- sand blast and nickel plated
- nominal pressure:Max.8bar(116psi)
- temperature:-10~100°C(14～212°F)
- threaded ISO228/1
- 100% leak tested
Technical Specification

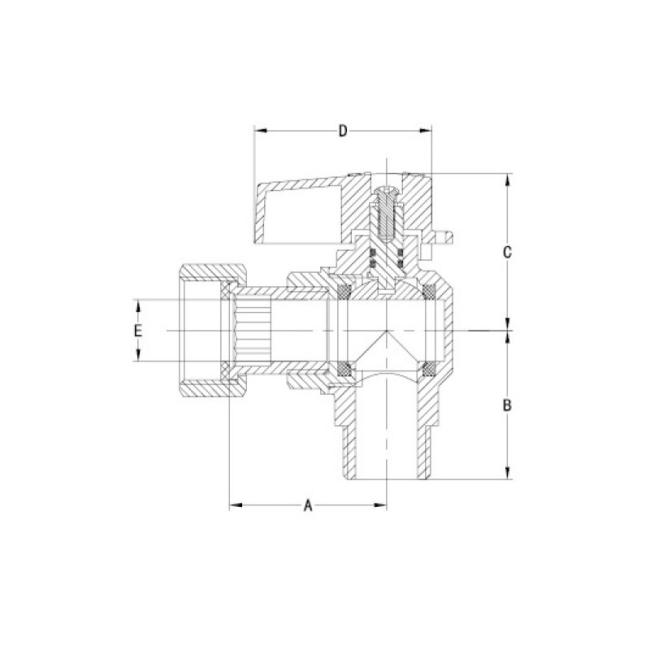

Dimensions
|
SIZE |
A | B | C | D | E |
| M1/2" x F3/4" |
38 |
36 | 40 | 44 | 14.8 |
Product Details
-
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
-
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
-
Ball Valve: Smooth and wear resisting, with good sealing performance.
-
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
-
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
-
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
-
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
-
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.
Reminding
- The thread, color of handle, materials, etc. can be customized.
- Male x Female Brass Gas Ball Valve with Aluminium handle.
- Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.
Certificates of AV 1007-MF
Brass Gas Ball Valve series
-
1. The AV1007-MF Brass Gas Ball Valve is designed with both male and female threaded ends, allowing for easy installation and compatibility with various gas systems. The valve features a M1/2" male thread on one end and a F3/4" female thread on the other, making it versatile for different piping configurations. The valve is constructed from durable brass material, ensuring long-lasting performance and resistance to corrosion.
2. The male x revolving female design of the valve allows for smooth operation and precise control of gas flow. The PTFE (polytetrafluoroethylene) sealing material provides a tight seal to prevent leaks and ensure safety in gas applications. The valve is suitable for use in residential, commercial, and industrial settings where reliable gas control is essential.
3. With its compact size and sturdy construction, the AV1007-MF Brass Gas Ball Valve is a reliable choice for gas plumbing systems. Whether used for natural gas, propane, or other gases, this valve offers a secure and efficient solution for regulating gas flow. The male x female threaded ends make it easy to connect to existing piping, while the revolving female end allows for convenient adjustment of the valve position.
Compant Profiles
Packaging Details
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2"x3/4" | 251 | 17x12x8.5 | 35x25x18 | 10 | 80 |
