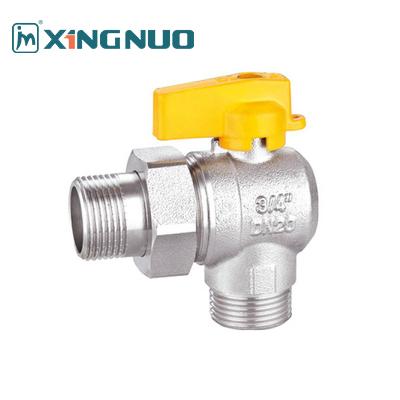

Male Threaded 1/2 Inch Brass Gas Ball Valve Nickel Plated 3/4 Inch
Brass Gas Ball AV1008-MM Male x Male M1/2" x M3/4" Valves
Specification
- forged brass body
- sand blast and nickel plated
- nominal pressure:Max.8bar(116psi)
- temperature:-10~100°C(14～212°F)
- threaded ISO228/1
- 100% leak tested
Technical Specification
Dimensions
|
SIZE |
A | B | C | D | E |
| 1/2"x1/2" |
50 |
36 | 38 | 43 | 15 |
| 3/4"x3/4" | 54.5 | 38 | 40.5 | 43 | 18 |
Product Details
-
1. The brass valve body is constructed through high-density forging techniques, ensuring the absence of blisters, air pockets, and leakages, and is manufactured using specialized high-precision CNC machinery.
2. Similarly, the brass bonnet is also produced via high-density forging, guaranteeing a flawless finish free from blisters, air holes, and leakages, utilizing the same advanced CNC technology for precision.
3. The ball valve features a smooth surface that is resistant to wear, providing excellent sealing capabilities for reliable performance.
4. The brass valve stem is crafted from hot-rolled brass, offering high tensile strength and exceptional toughness, ensuring durability and resistance to deformation or fracture over extended use.
5. The handle is made from aluminum alloy through a casting process, enhanced with professional surface painting for wear resistance and anti-corrosion properties, designed to be compact and facilitate easy operation in diverse environments.
6. The ball seat is manufactured from pure polytetrafluoroethylene (PTFE), known for its high elasticity and wear resistance, making it resistant to aging and degradation over time.
7. The stainless steel lock screw features an internal anti-loosening design, ensuring long-term reliability and stability during use.
8. The O-ring is produced from imported raw materials specifically designed for gas applications, characterized by a low friction coefficient, extended service life, and minimal leakage risk.
Reminding
- The thread, color of handle, materials, etc. can be customized.
- Male x Male Brass Gas Ball Valve with Aluminium handle.
- Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.
Certificates of AV 1008-MM
Brass Gas Ball Valve series
-
Gas valve is a new type of safety equipment for gas pipeline engineering; It is used to cut off, connect and regulate the gas in the pipeline, with good control characteristics and sealing performance; It is suitable for city gas, liquefied petroleum gas, natural gas, oxygen and other gas medium pipelines.
-
Gas valves are widely used in gas medium pipelines such as gas, liquefied petroleum gas, natural gas, oxygen, etc. in urban gas supply pipe network systems; The drive forms include manual, worm gear drive, electric, pneumatic, hydraulic, electro-hydraulic linkage and other actuators, which can realize remote control and automatic operation.
Compant Profiles
Packaging Details
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2"x1/2" | 258 | 21.5x8.5x9 | 43.5x19x22.5 | 5 | 50 |
| 3/4"x3/4" | 372 | 21.5x8.5x9 | 43.5x19x22.5 | 5 | 50 |
