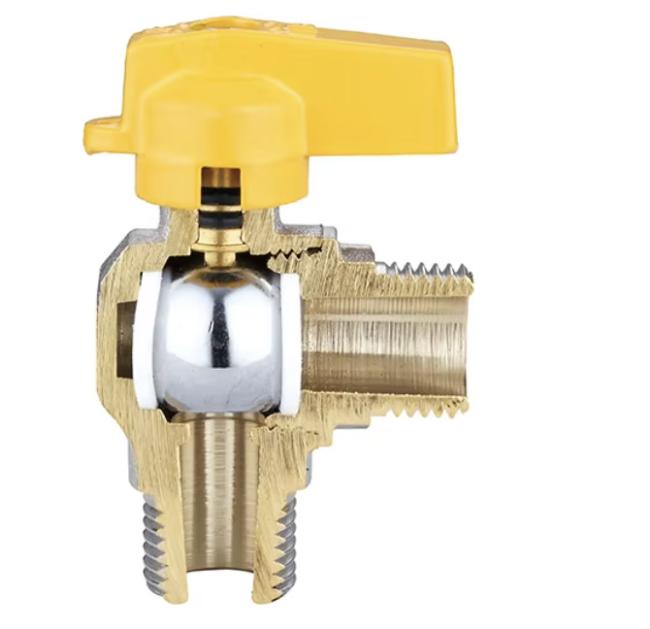

Male And Female Threaded Brass Gas Ball Valve
Brass Gas AV1005-MF M1/2" x F3/4" Male x Female HPB57-3 Ball Valves
Specification
- forged brass body
- sand blast and nickel plated
- nominal pressure:Max.8bar(116psi)
- temperature:-10~100°C(14～212°F)
- threaded ISO228/1
- 100% leak tested
Technical Specification

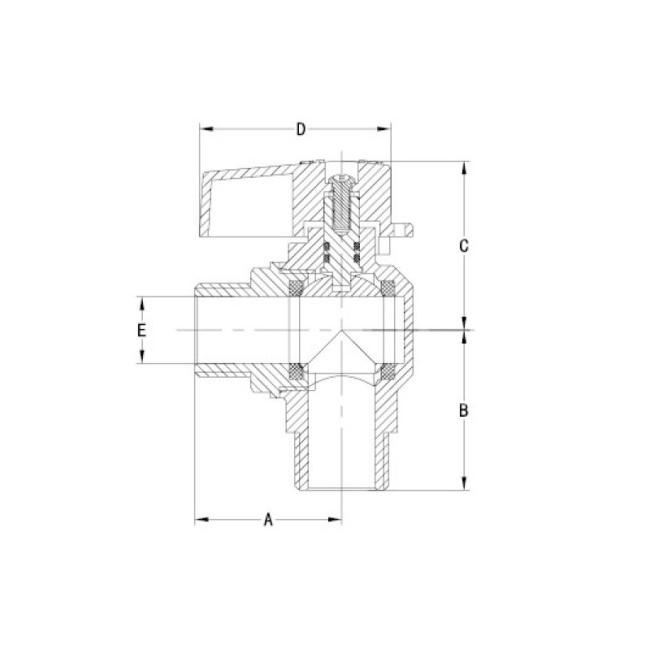

Dimensions
|
SIZE |
A | B | C | D | E |
| M1/2" x F1/2" |
24 |
36 | 40 | 44 | 14.8 |
| M1/2" x F3/4" | 27.5 | 38 | 42 | 44 |
19 |
| M3/4" x F1/2" | 27.5 | 38 | 42 | 44 | 19 |
| M3/4" x M3/4" | 28 | 38 | 42 | 44 | 19 |
Product Details
-
1. The Brass Valve Body and Brass Bonnet are both crafted through high-density forging processes, ensuring a flawless finish with no blisters, air holes, or leakages. These components are manufactured using special high precision CNC machines, guaranteeing top-notch quality and durability.
2. The Ball Valve boasts a smooth surface that is wear-resistant, providing excellent sealing performance for optimal functionality and reliability in various applications.
3. The Brass Valve Stem is constructed from hot rolled brass, offering high tensile strength, good toughness, and long-term durability without deformation or fracture, making it a reliable component for extended use.
4. The Handle is made of aluminium alloy through casting, featuring professional surface painting that is wear-resistant and corrosion-resistant. Its small appearance allows for flexible opening and closing in diverse environments, ensuring ease of operation.
5. The Ball Seat is crafted from pure PTFE (polytetrafluoroethylene), providing high elasticity and wear resistance while preventing premature aging, ensuring long-lasting performance.
6. The Stainless Steel Lock screw is designed with internal anti-loose features, allowing for prolonged use without the risk of loosening over time, providing secure fastening in various applications.
7. The O-ring is made of imported raw materials, specially designed for gas applications, offering a small friction coefficient, long service life, and resistance to leakage, ensuring reliable sealing performance for extended periods.
Reminding
- The thread, color of handle, materials, etc. can be customized.
- Male x Female Brass Gas Ball Valve with Aluminium handle.
- Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.
Certificates of AV 1005-MF
Brass Gas Ball Valve series
-
1. This gas valve features both male and female threaded ends, allowing for easy installation in a variety of gas systems. The male end is M1/2" while the female end is F3/4", providing compatibility with standard gas fittings. Constructed from durable brass material, this gas ball valve is designed to withstand high pressure environments, with a maximum pressure rating of 8 bar.
2. The male threaded end of the valve is M1/2", which means it has a metric thread size of 1/2 inch. This end is typically used to connect to other components in the gas system, such as pipes or fittings. On the other hand, the female threaded end is F3/4", indicating a female thread size of 3/4 inch. This end is designed to receive a male threaded component for a secure and leak-proof connection.
3. Made from HPB57-3 brass material, this gas ball valve is known for its corrosion resistance and durability. The valve is suitable for use in a wide range of applications, including residential, commercial, and industrial gas systems. With a maximum pressure rating of 8 bar, this valve is capable of handling high-pressure gas flow without compromising safety or performance. Whether used in a home heating system or a commercial gas appliance, this male x female threaded gas valve provides reliable and efficient gas control.
Compant Profiles
Packaging Details
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| M1/2"x F1/2" | 194 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
| M1/2"xF3/4" | 260 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
| M3/4xF1/2" | 263 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
| M3/4"xF3/4" | 262 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
