3/4 inch SS OEM Brass Air Manifold Customized Max.16bar 3/4"X16 Manifolds water separator

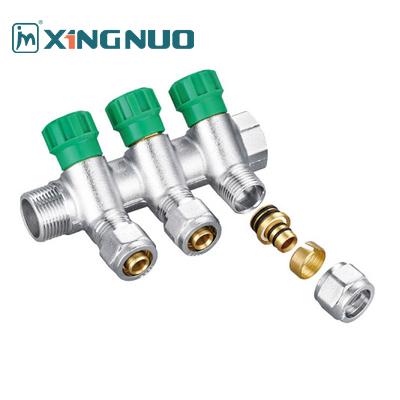

MF1602 3/4"x16 Brass Manifolds
Specification
- forged brass body
- sand blast and nickel plated
- nominal pressure:Max.16bar
- temperature:-10~110°C(14～238°F)
- threaded ISO228/1
- 100% leak tested
Technical Specification
Dimensions
|
SIZE |
A | B | C | D | E | F | G |
| 3/4"x16-2 | 93 | 36 | 47.5 | 27 |
Φ16 |
32 | 3/4" |
| 3/4"x16-3 |
129 |
36 | 47.5 | 27 | Φ16 | 32 | 3/4" |
| 3/4"x16-4 | 165 | 36 | 47.5 | 27 | Φ16 | 32 | 3/4" |
Product Details
-
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
-
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
-
Ball Valve: Smooth and wear resisting, with good sealing performance.
-
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
-
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
-
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
-
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
-
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.
Reminding
- Brass Manifold with Aluminium handle.
- Distrustion Manifold in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.
Certificates of MF1602
Brass Manifold series
- The water collector refers to the water supply and return collection and distribution, flow regulation and control, and can manually or automatically eliminate the gas gathering at this part.
Compant Profiles
1. The product in question is a customized air manifold designed to accommodate a maximum pressure of 16 bar. This manifold features a 3/4 inch stainless steel (SS) construction, ensuring durability and resistance to corrosion. The design incorporates brass components, which enhance the manifold's performance and reliability in various applications, particularly in systems requiring efficient air distribution.
2. This specific air manifold is engineered with a 3/4" x 16 configuration, making it suitable for a range of industrial and commercial uses. The integration of a water separator within the manifold is a key feature, as it effectively removes moisture from the air supply, thereby protecting downstream equipment from potential damage caused by water contamination. This functionality is crucial in maintaining the integrity and efficiency of pneumatic systems.
3. Tailored to meet original equipment manufacturer (OEM) specifications, this air manifold is an ideal solution for those seeking a high-quality component that can withstand demanding operational conditions. Its robust construction and thoughtful design make it a reliable choice for professionals in various sectors, including manufacturing, automotive, and construction, where efficient air management is essential for optimal performance.
Packaging Details
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 3/4"x16-2 | 410 | 31x10x8 | 41x32x21 | 5 | 50 |
| 3/4"x16-3 | 550 | 31x14x8 | 33x32x29 | 5 | 40 |
| 3/4"x16-4 | 700 | 31x17x8 | 35x32x17 | 5 | 20 |
