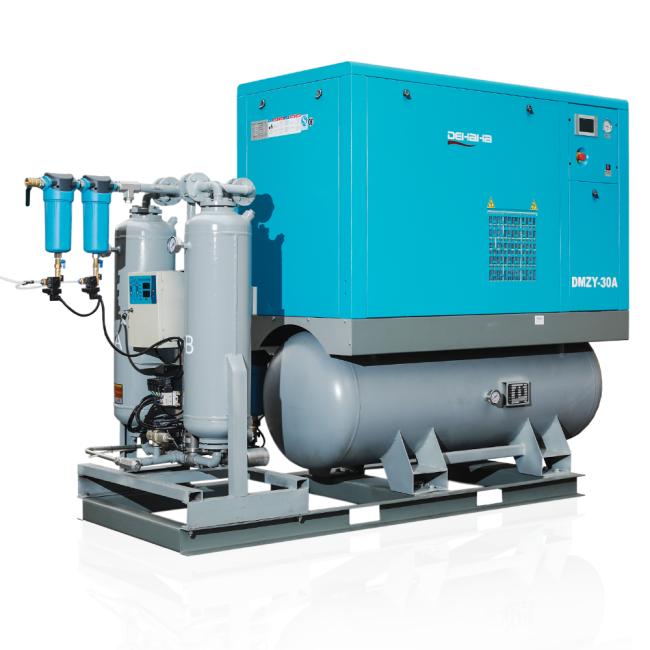

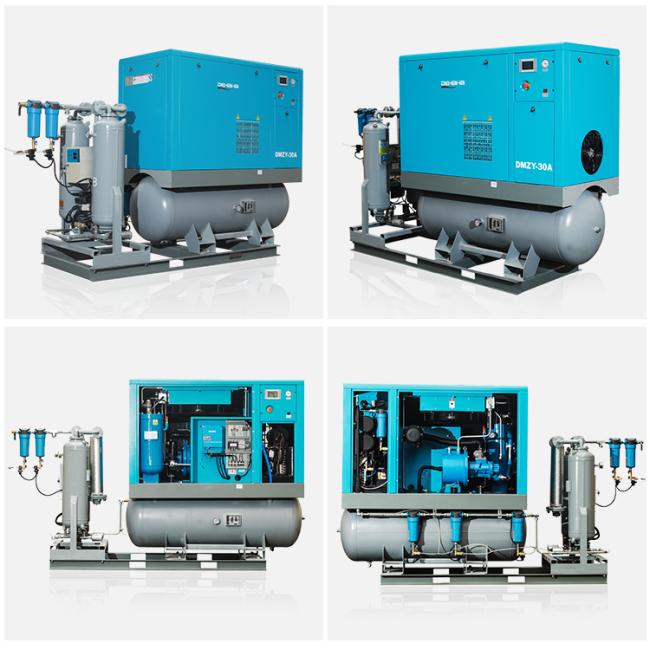

22 KW 30HP 16 Bar Combined Screw Air Compressor Portable With Air Dryer
Filter: 16bar/3.5m³/4 pcs
Start mode: frequency conversion start
Laser cutting machine power: 6000W-8000W
Filter fineness, use four stage filters, particle
content≤0.01μm oil content≤0.003PPM
Equipment configuration: screw air compressor, air tank, air dryer, four stage filters, auto drain valve, inverter.
Advantages
- Large displacement: Displacement 10% higher than ordinary piston compressor.
- Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
- Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
- Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
|
Model
|
Capacity (m3/min) |
Pressure
(Bar )
|
Power (kw)
|
Noise
(DB)
|
Outlet diameter
|
Dimension(mm)
|
Weight
(kg)
|
Air tank
(L)
|
Exhaust oil content
(ppm)
|
|
DBZY-10A
|
0.55
|
1.58
|
7.5
|
65
|
G3/4
|
1418*700*1500
|
395
|
260
|
0.01
|
|
DBZY-15A
|
1.05
|
1.58
|
11
|
65
|
G3/4
|
1882*790*1731
|
560
|
500
|
0.01
|
|
DBZY-20A
|
1.51
|
1.58
|
15
|
65
|
G3/4
|
1882*790*1731
|
572
|
500
|
0.01
|
|
DMZY-15A
|
1.05
|
1.58
|
11
|
65
|
G3/4
|
1882*790*1731
|
560
|
500
|
0.01
|
|
DMZY-20A
|
1.52
|
1.58
|
15
|
65
|
G3/4
|
1882*790*1731
|
572
|
500
|
0.01
|
|
DMZY-30A
|
2.41
|
1.58
|
22
|
68
|
G3/4
|
1882*1081*1801
|
630
|
500
|
0.01
|
|
DCZY-30A
|
2.21
|
1.58
|
22
|
68
|
G3/4
|
1882*1081*1801
|
630
|
500
|
0.01
|
Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Jiangsu, China, more than 24 years.
Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.
Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.
Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
Q10.How long could your air compressor be used?
A: Generally, more than 10 years.
