16bar Combined Screw Air Compressor De Ar 15HP 11kw For Fiber Laser
The Air Compressor for Fiber Laser Cutting Machine

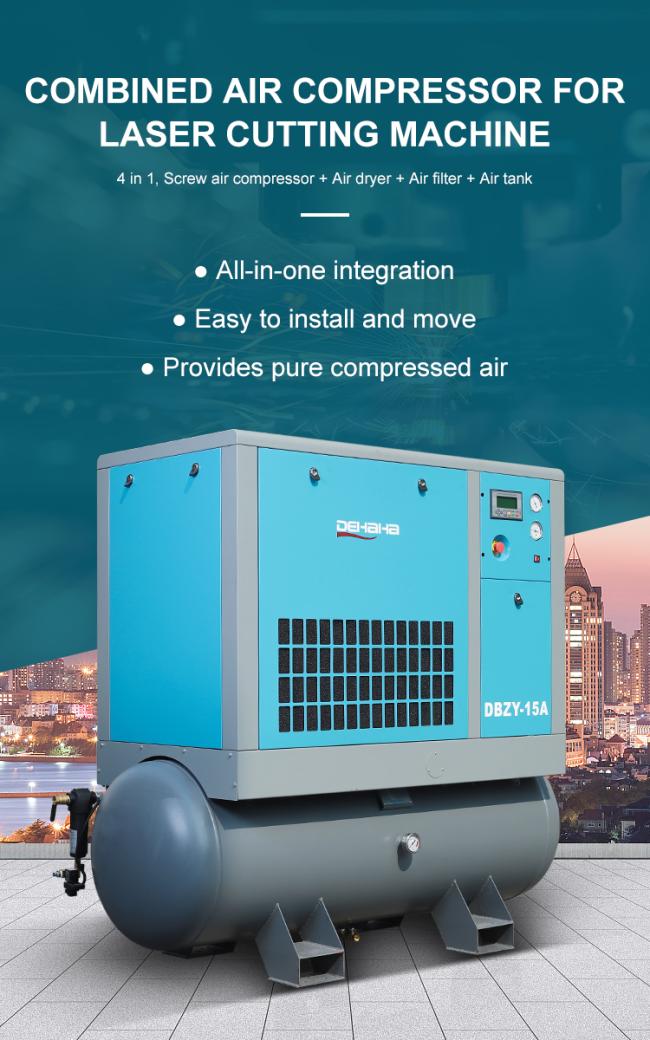

Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting machine.
More Convenient

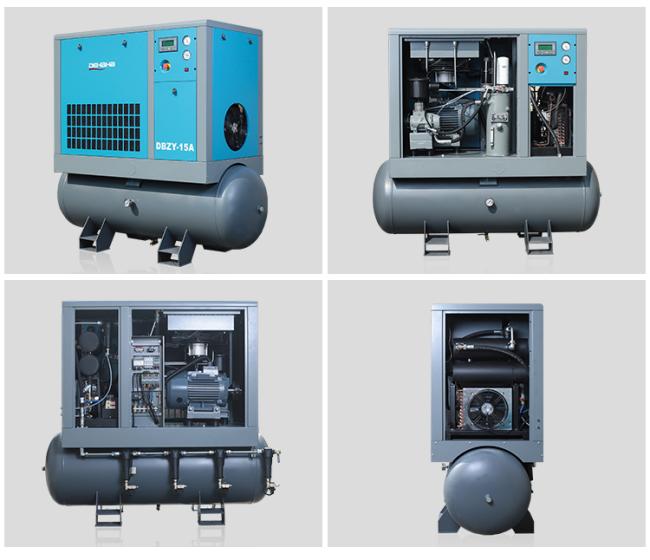

Integration of air compressor, air tank, and air dryer. It avoids the trouble of customers purchasing additional pipes and fittings. Use directly after installation, saving space.
More Reliable
Modular design, durable components, low noise and vibration, and easy maintenance.
Energy Efficiency
Using permanent magnet variable speed motor, specialized for laser cutting machine, reducing pressure leakage and more energy-saving.
Pure Compressed Air
High efficiency refrigerated dryer, multi-stage precision filter, oil content of gas is lower than 0.001 PPM, ensuring the purity of compressed air.
| Model | Capacity (m3/min) |
Pressure
(Bar )
|
Power
(kw)
|
Noise
(DB)
|
Outlet diameter | Dimension(mm) |
Weight
(kg)
|
Air tank
(L)
|
Exhaust oil content
(ppm)
|
| DBZY-10A | 0.55 | 1.58 | 7.5 | 65 | G3/4 | 1418*700*1500 | 395 | 260 | 0.01 |
| DBZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 | 500 | 0.01 |
| DBZY-20A | 1.51 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 500 | 0.01 |
| DMZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 |
500
|
0.01 |
| DMZY-20A | 1.52 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 500 | 0.01 |
| DMZY-30A | 2.41 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 500 | 0.01 |
| DCZY-30A | 2.21 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 500 | 0.01 |
Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Qidong(Close to Shanghai), China, more than 24 years.Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment
