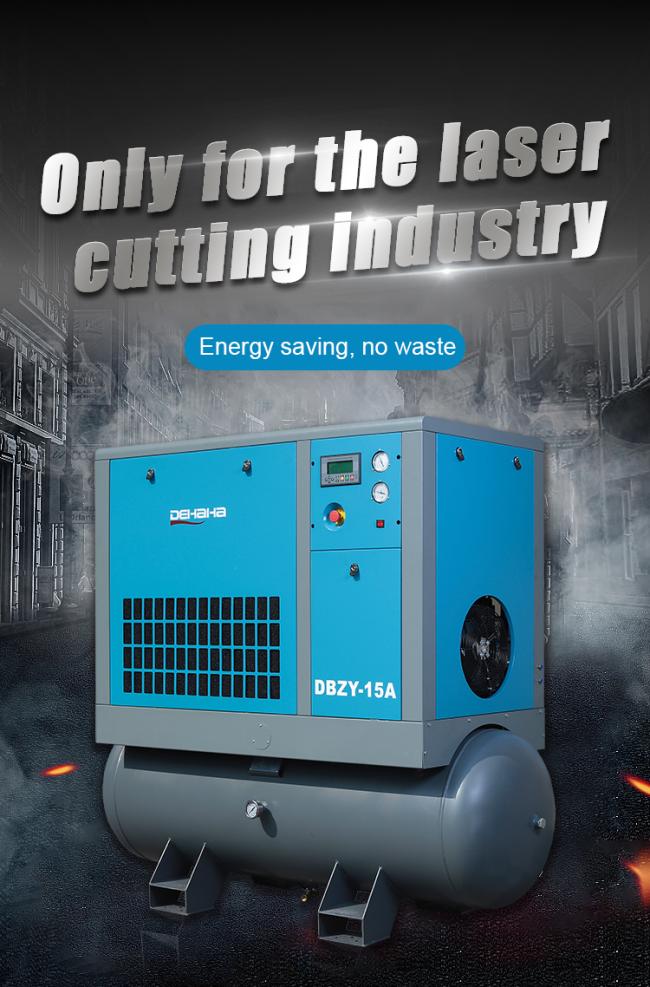

Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
16bar Portable 15HP 11kW Screw Air Compressor de ar Air Compressor for Fiber Laser
DEHAHA Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter.
Main Features
1.Full performance in one screw compressor, convenience and save space
2.High efficiency performance, reliable quality
3. Power: 11~22KW
4. Pressure:7~16bar
5. Capacity: 0.55~2.41m3/min
Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting machine.
More Convenient
Integration of air compressor, air tank, and air dryer. It avoids the trouble of customers purchasing additional pipes and fittings. Use directly after installation, saving space.
More Reliable
Modular design, durable components, low noise and vibration, and easy maintenance.
Energy Efficiency
Using permanent magnet variable speed motor, specialized for laser cutting machine, reducing pressure leakage and more energy-saving.
Pure compressed air
High efficiency refrigerated dryer, multi-stage precision filter, oil content of gas is lower than 0.001 PPM, ensuring the purity of compressed air.
| Model |
Capacity (m3/min)
|
Pressure (Bar )
|
Power
(kw)
|
Noise
(DB)
|
Outlet diameter
|
Dimension(mm)
|
Weight (kg)
|
Air tank(L)
|
Exhaust oil content
(ppm)
|
|
DBZY-10A
|
0.55
|
1.58
|
7.5
|
65
|
G3/4
|
1418*700*1500
|
395
|
260
|
0.01
|
|
DBZY-15A
|
1.05
|
1.58
|
11
|
65
|
G3/4
|
1882*790*1731
|
560
|
500
|
0.01
|
|
DBZY-20A
|
1.51
|
1.58
|
15
|
65
|
G3/4
|
1882*790*1731
|
572
|
500
|
0.01
|
|
DMZY-15A
|
1.05
|
1.58
|
11
|
65
|
G3/4
|
1882*790*1731
|
560
|
500
|
0.01
|
|
DMZY-20A
|
1.52
|
1.58
|
15
|
65
|
G3/4
|
1882*790*1731
|
572
|
500
|
0.01
|
|
DMZY-30A
|
2.41
|
1.58
|
22
|
68
|
G3/4
|
1882*1081*1801
|
630
|
500
|
0.01
|
|
DCZY-30A
|
2.21
|
1.58
|
22
|
68
|
G3/4
|
1882*1081*1801
|
630
|
500
|
0.01
|
