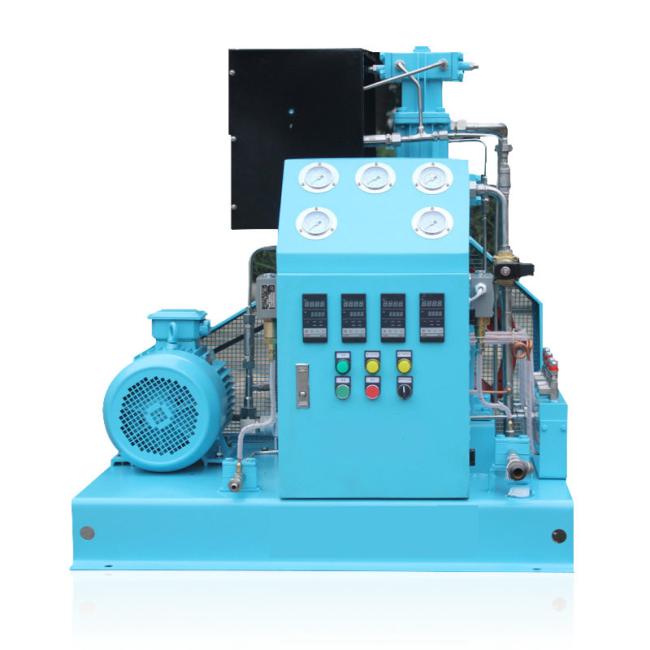

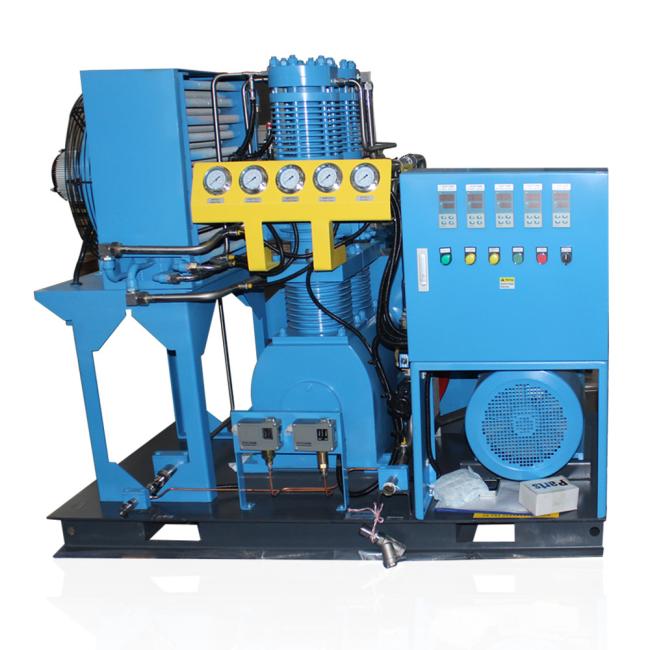

300 Bar Oxygen Booster Compressor High Pressure Stationary Oil Free Oxygen Compressor
1. Medium: Oxygen
2. Inlet pressure: 1.5bar
3. Temp. Input: ≤ 40 ℃
4. Discharge pressure: 200bar
5. Temp. discharge: ≤ 50 ℃
6. Volume: 100 Nm3 / h
7. Piston stroke: 110mm
8. Compression level: 4stages
9. Structure type: Vertical 100% oil-free
10. Number of cylinders: 4 cylinders
11. RPM: 320r / min
12. Voltage: 220v / 60hz / 3ph
13. Cooling: water
14. Cooling volume: 5T-hour
15. Spindle power: ≤36.5kw
16. Engine rpm: 970r / min
17. Oxygen inlet / outlet: 50, M22 mm
18. 40mm water inlet and outlet
19. Dimensions: 2100X1100X1600mm 20. Weight: 1.6T
21. Coupling: Belt
22. Material of cylinder, valve, piping, cooler: stainless steel
|
Oilless High Pressure O2 Compressor Specification
|
|||||
|
Model |
Volume
|
Inlet pressure
|
Outlet
pressure
|
Type
|
Cooling type
|
|
DHH-1-3/4-150 |
1-3m³
|
0.3-0.4MPa
|
15MPa
|
2 lines 4 stages vertical type
|
air cooling
|
|
DHH-4-12/4-150 |
4-12m³
|
0.3-0.4MPa
|
15MPa
|
2 lines 4 stages vertical type
|
air cooling
|
|
DHH-13-40/4-150 |
13-40m³
|
0.3-0.4MPa
|
15MPa
|
3 lines 3 stages W type
|
air cooling
|
|
DHH-13-40/4-150 |
13-60m³
|
0.2-0.4MPa
|
15MPa
|
2 lines 4 stages vertical type
|
Water cooling
|
|
DHH-50-80/4-150 |
40-80m³
|
0.2-0.4MPa
|
15MPa
|
4 lines 4 stages S type
|
Water cooling
|
|
DHH-80-120/4-150 |
80-120m³
|
0.2-0.4MPa
|
15MPa
|
4 lines 4 stages S type
|
Water cooling
|
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineersteams ’ .We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries.
Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.
Dehaha’s primary businesses focus in following key areas:
Oil-injected rotary screw compressors
Portable screw air compressors
Oil free air compressors
High pressure air compressors
Air treatment equipment
1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.
