Permanent Magnet Variable Speed Compressor Industrial Rotary Air Compressor
Variable speed drive allows the air compressor to automatically adjust the motor speed to adapt to different working conditions. Since energy costs account for more than 75% of the total cost, using VSD air compressors can not only save a lot of money, but also save more energy for the environment
Benefits of a Variable Speed Compressor
No need to unload - the ability to start and stop under full system pressure.
Reduced power costs - no loss of energy through running unloaded.
Reduced power surges - avoid peak currents from starting air compressor motor.
More energy efficient - save 30% of the energy used by a typical fixed speed compressor.
Precise electrical control - motor speeds can be slowed down, brought to a halt or revved up.
System leaks minimised - lower system pressure reduces the risk of leaks.
| Model | Volume flow (m3/min) |
Power (kW) |
Noise (db) |
Outlet diameter | Dimension(mm) |
Weight (kg) |
||||||
| 6bar | 7bar | 8bar | 10bar | 13bar | Lenght | Width | Height | |||||
| DM-10A | / | 1.3 | 1.2 | 1 | / | 7.5 | 63 | G3/4 | 895 | 590 | 970 | 190 |
| DM-20A | 2.55 | 2.4 | 2.3 | 2.0 | / | 15 | 65 | G3/4 | 1062 | 690 | 1000 | 236 |
| DM-30A | 4.5 | 4.15 | 3.7 | 3.2 | / | 22 | 68 | G1 | 1330 | 830 | 1265 | 410 |
| DM-40A | 6 | 5.7 | 5.2 | / | / | 30 | 68 | G1 | 1330 | 830 | 1265 | 520 |
| DM-50A | 7.35 | 6.9 | 6.5 | 5.6 | 4.9 | 37 | 69 | G1 1/2 | 1500 | 940 | 1415 | 655 |
| DM-60A | 8.7 | 8.1 | 7.5 | 6.75 | 5.9 | 45 | 70 | G1 1/2 | 1500 | 940 | 1415 | 730 |
| DM-75A | 11.2 | 10.3 | 9.5 | / | 7.8 | 55 | 70 | G2 | 1600 | 1060 | 1470 | 950 |
| DM-100A | 13.6 | 13 | 12.8 | 11 | 9.5 | 75 | 72 | G2 | 2000 | 1120 | 1590 | 1070 |
| DM-125A | 17.2 | 16.7 | 15.5 | 14.0 | 12.5 | 90 | 72 | G2 | 2000 | 1120 | 1590 | 1221 |
| DM-150A | 21.5 | 20.8 | 19.6 | 17.8 | 15.5 | 110 | 72 | DN65 | 2400 | 1630 | 1980 | 1950 |
| DM-175A | 24.6 | 24.1 | 23.2 | 19.5 | 17 | 132 | 72 | DN65 | 2400 | 1630 | 1980 | 2150 |
| DM-220A | 30.2 | 28.8 | 27.8 | 23.0 | 20 | 160 | 72 | DN80 | 2800 | 1828 | 2150 | 3620 |
| DM-250A | 34.9 | 33.2 | 31.2 | 27.5 | 25.8 | 185 | 72 | DN80 | 2800 | 1828 | 2150 | 3920 |
| Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required. Motor Protection Class: IP23/IP54/IP55 or as per your required. Certification: CE/ISO9001/TUV/UL/SGS/ASME. Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok. |
||||||||||||
Germany Rotorcomp air end, German technology, level 1 energy efficiency standard.
Motor
Efficient design, SKF bearings, ensure the long life of the motor. IP54 protected fully enclosed motor, worry-free in harsh conditions run.
Large Touch Master Controller
Matching inverter exclusive customization.LCD Chinese and English switch display.
Inverter
ABB / Siemens brand vector control frequency conversion system, frequency conversion response speed is faster. Constant pressure output to remove pressure fluctuation and off-load.
Pre-filter Protection
Unique pre-filter cover design to keep the inside of the machine clean and extend the maintenance cycle. Easy to disassemble and clean, and can be reused.
Efficient Cooling System
Adopting large-size high-efficiency cooler to cope with harsh working conditions.
Electrical System
Application Industry
Screw air compressors are widely used in chemical, pipeline, textile, precision electronics, furniture processing, beverage factories, industrial equipment, thermal power plants, automobile manufacturers, etc.

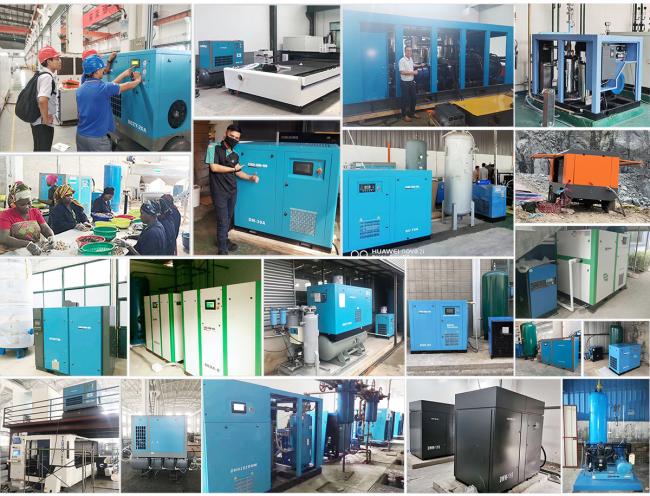

Customer case
DHH Compressor was established in 1996 and has 26 years of experience in air compressor manufacturing, providing customers with one-stop air compressor solutions.
Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Jiangsu, China, more than 26 years.
Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.
Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.
Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.
Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.
Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
Q10.How long could your air compressor be used?
A: Generally, more than 10 years.
