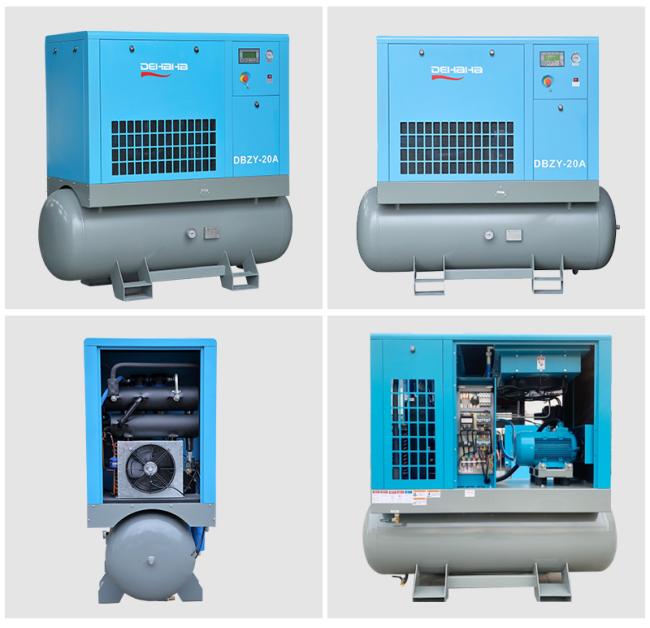

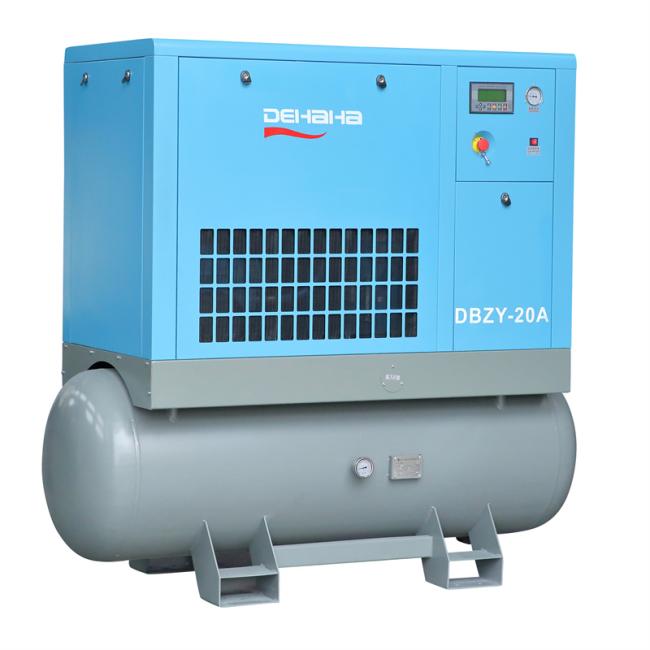

PM VSD Rotary Screw Air Compressors 16 Bar With Air Dryer And Storage Tank
Type: fix speed, all-in-one type
Air delivery: 1.51m3/min
Working pressure: 7~16bar
Cooling: air cooling
Electric motor:20hp 15kW IP54 protection level
Dimension: 1882*790*1731mm
Weight: 572kg
Air tank: 500 L
Air dryer capacity: 16bar/2.4m3/2-10℃
Air filter: 16bar/2.8m3/4 pcs, particle content≤0.01μm, oil content≤0.003PPM
Warranty:24months
Advantages
Large displacement: Displacement 10% higher than ordinary piston compressor.
Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
| Model | Capacity (m3/min) |
Pressure
(Bar )
|
Power
(kw)
|
Noise
(DB)
|
Outlet diameter | Dimension(mm) |
Weight
(kg)
|
Air tank
(L)
|
Exhaust oil content
(ppm)
|
| DBZY-10A | 0.55 | 1.58 | 7.5 | 65 | G3/4 | 1418*700*1500 | 395 | 260 | 0.01 |
| DBZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 | 500 | 0.01 |
| DBZY-20A | 1.51 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 500 | 0.01 |
| DMZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 | 500 | 0.01 |
| DMZY-20A | 1.52 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 500 | 0.01 |
| DMZY-30A | 2.41 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 500 | 0.01 |
| DCZY-30A | 2.21 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 500 | 0.01 |
