Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board
Price:
USD289-USD299\PCS
MOQ:
1PCS
Delivery Time:
15-30 work days
Brand:
PLINK
Product Description

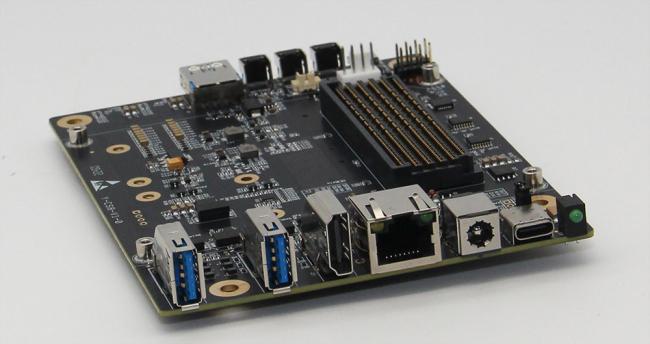

Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board
NVIDIA Embedded Board Jetson AGX Xavier Carrier Board Y-C9-Xavier
The Y-C9 Development board is with NVIDIA Jetson AGX Xavier module, it can carry hundreds of functional modules through 2 Mini PCIe connectors to further expand the system functions. it's a small Jetson carrier board which is for intelligent face recognition and autopilot etc.
|
Product Name |
Y-C9-Xavier |
| Module | NVIDIA Jetson AGX Xavier |
| AI Performance | 32 TOPS |
| Memory | 32GB 256-bit LPDDR4x 136.5GB/s |
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
| Vision Accelerator | 2x PVA |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| DL Accelerator | 2x NVDLA |
| Storage | 32GB eMMC 5.1 |
| Networking | 10/100/1000 BASE-T Ethernet |
| Input Power | DC +12V |
| Serial port | 2* 3.3V TTL |
| Port | 2* miniPCIE 1* M.2 Key M |
| USB Connector | 3* USB 3.0 1* USB Type-C |
| Display | 1* HDMI |
| Temperature Range | -40°C ~ 85°C |
| Size | 136mm × 100mm ×20mm |
| Weight | 112g |
