YG6 Mushroom Head Carbide Wear Parts For Submersible Pump
Custom lift valve part for a submersible pump, OEM Tungsten carbide Precision parts mushroom head

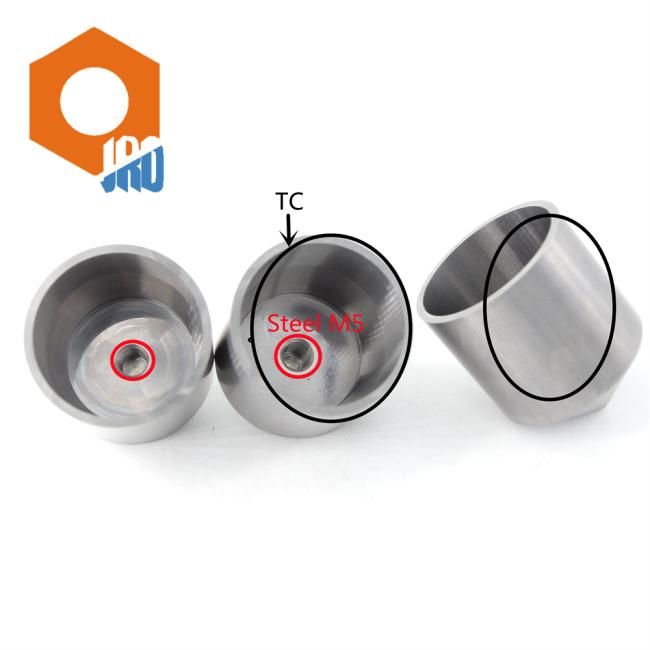

YG6 Mushroom Head Carbide Wear Parts For Submersible Pump, we can make the mushroom head for lift valve, type 1200 and 650 and 350.
Tungsten carbide parts holds incredible potential for the oil and gas industry and mining- where leading installations are already profiting from its Wear-resistant, corrosion-resistant and high hardness.
Cemented Carbide Accessories for MWD/LWD, it has three sizes for 1200/650/350 using in measurement while drilling made by Halliburton.

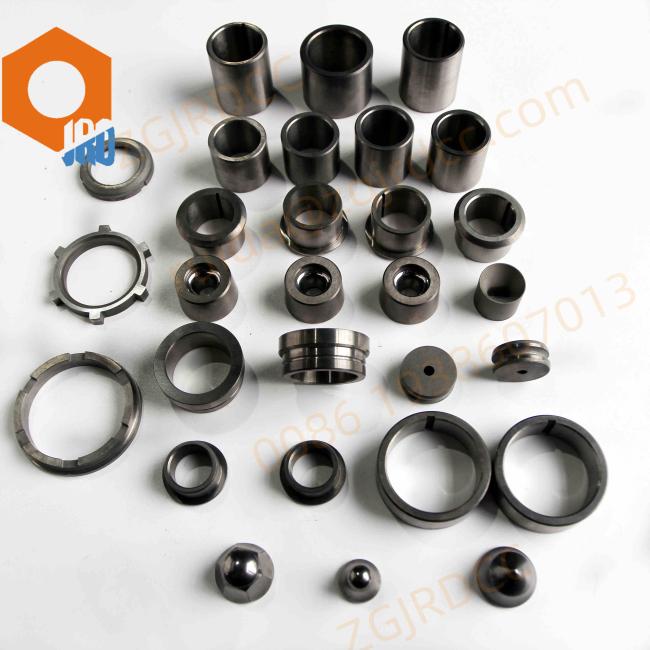

The products will be used to upper pan vavle complete, lower pan valve, piston, bushing, nozzle of the liquid flow control and automatic push device of vertical drilling tools, flow deflector, van sheel, vane wheel axle, vane wheel box, nozzle of rhe self-activated oscillating-rotating impact drilling tools. Mushroom head(main vavle core), flow limitation ring, flow limitaiton chamber, nose cap, flow divider, flow, spcaer sleeve, pulse hole valve, oscillator of self-activated, upper and lower bearing sleeve and wear sleeve of the pulse generator of MWD and LWD. And nozzle, TC bearing and wear sleeve of the under well tools.
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
Lift Valve
1.Made by 100% original tungsten carbide material
2.High abrasive resistance
3.After accurate grinding and polishing,the frictional factor of surface is very low.
4.Widely used in ball-bearing,seat valve, ball screws and flow meters.pen,spraying machines ,pump,machinery parts,oil,hydrochloric zcid lab,hardness measuring instrument,and so high-end industry.
5.Recommended grade: YG8,YG11,YG15,YS2T,YL10.2,other grade can be offered by customers' request.
6.We can manufacture various tungsten carbide valve seat in high qulaity with competitive price.
