Cemented carbide  Rotary Burr

tungsten carbide Burrs 6mm Shank - A,B,C,D,E,F,L,T,D types

Choose from a variety of different cut types and sizes to suit your application.

ZGJRDCC tungsten carbide burrs are designed for machining materials of virtually any strength. Manufactured in compliance with the highest quality standards.
Advantages:
- Highest stock removal performance through optimum matching of tungsten carbide, geometry, cut and coating, if necessary
- Improved comfort with reduced operator fatigue due to innovative cuts for high-performance applications
- Very long tool life and high stock removal rates due to application-oriented tool design
- Reduced wear of the drive system due to impact free work without chatter marks, thanks to the high concentricity

Burr Applications:
- Deburring
- Contouring
- Edge chamfering/rounding
- Milling out in preparation for build-up welding
- Preparation of weld seams/weld dressing
- Cleaning cast material
- Modification of workpiece geometry

General recommendations for use: Optimum power output and rotational speed of the drive system (air powered or electric grinders, flexible shaft system) are necessary conditions for a cost-effective use of tungsten carbide burrs.

used for metalwork, tool making, engineering, model engineering, wood carving, jewellery making, welding, chamferring, casting, deburring, grinding, cylinder head porting and sculpting. They are used in the aerospace, automotive, dental, metal sculpting, and metal smith industries; to name but a few.

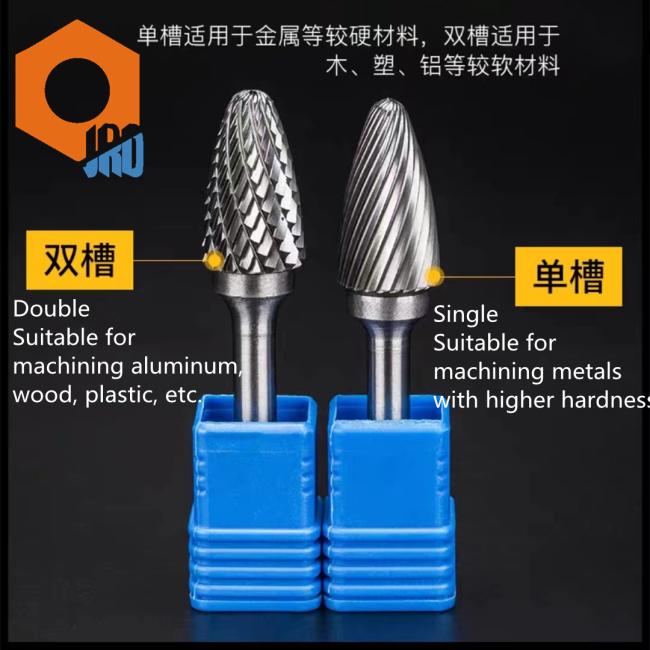

*The carbide burs tools for metal working, are available in three main styles of cut: single groove, double groove and double groove with end cut.

*Material: 100% of raw materials.

*Tolerance: strict tolerance extent control, which can reach about 0.01mm;

*Types: cylindaric, conical, inverted conical, parabolic,ballistic.

*Physical performance: Durable,high hardness and impact toughness,efficient, long lasting...

Single cut (one flute) Tungsten carbide carving bits have a right handed (Up cut) spiral flute. These tend to be used with stainless steel, hardened steel, copper, cast iron, and ferrous metals and will remove material quickly. Use for heavy stock removal, milling, deburring and cleaning.

•Heavy removal of material

- Use the highest rotational speed possible within the recommended rotational speed and cutting speed range.
- In exceptional cases, it is possible to work at less than 3,000 RPM. This is preferable for stationary use or when countersinking with 360¡ use of the burr surface.
- For low stock removal (deburring, chamfering, surface finishing), the rotational speed can be substantially increased up to 100% (exception: tungsten carbide burrs with long shanks).
- For materials which do not conduct heat well, such as stainless steel (INOX), titanium alloys, etc., in particular, follow the rotational speed recommendations in order not to damage the tool. Avoid making the shank and tool turn blue.

FAQ

1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.

2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.

3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
