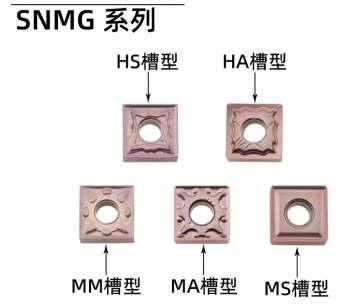

HRA 89 Tungsten Carbide Insert Bit SNMG Secure Cutting Edge
turning insert for CNC Cnmg Dnmg Vnmg Wnmg Tnmg Snmg Ccmt Dcmt Vcmt Wcmt Tcmt Scmt Machine Tool Cutting Tool Carbide Turning Tool
turning Insert, secure cutting edge, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Different coatings and flutes are available for cutting for carbon and alloy steel, stainless steel and high temperature alloys, steel and cast iron.
| Grade for Turning Inserts | ||||
| SENO GRADE | COATING | COLOR | WORKING MATERIAL | APPLICATION |
| SP8025 | CVD | golden yellow | P10-P30 | The carbide substrate have good anti-deformation resistance and toughness. MT-TiCN+Al2O3+TiN coating has very good surface quality and help to recognize wear easily. It is suitable for semi-finishing and finishing steel machining. |
| (MT-TiCN+Al2O3+TiN) | ||||
| SP8125 | CVD | black | P10-P40 | The carbide substrate have mild cobalt content and high cubic content, combining with thick TiCN and Al2O3, treated by sepcial technology after coating treatment, which gives inserts strong wearing resistance. It is prority for semi-finishing to finishing steel machining. |
| (Multi-TiCN+Al2O3) | ||||
| SM8020 | PVD (Silicon+TiAlN) | purple | M10-M30 | Micro WC grain substrate with high Co maintain cutting edge strength and it has smallest coefficient of friction and good nano hardness with good thermal stability silicon coating. The grade is very good for interrupt turning and milling for stainless steel. |
| SK8010 | CVD | black | K10-K30 | The medium-coarse substrate combine with thick TiCN and textured Al2O3, after special coating treatment, it has strong |
| (thick TiCN+ textured Al2O3) | wear-resistance. The grade is suitable for high-speed semi-finishing cast iron turning under stable working condition. | |||
| WNMG Insert | ||||||
| DF | ||||||
| Insert shape | Type | Size (mm) | ||||
| L | ΦI.C | S | Φd | r | ||
| DF Finishing | WNMG06T304-MA | 6.5 | 9.525 | 3.97 | 3.81 | 0.4 |
| WNMG06T308-MA | 6.5 | 9.525 | 3.97 | 3.81 | 0.8 | |
| WNMG06T312-MA | 6.5 | 9.525 | 3.97 | 3.81 | 1.2 | |
| WNMG060404-MA | 6.5 | 9.525 | 4.76 | 3.81 | 0.4 | |
| WNMG060408-MA | 6.5 | 9.525 | 4.76 | 3.81 | 0.8 | |
| WNMG060412-MA | 6.5 | 9.525 | 4.76 | 3.81 | 1.2 | |
| WNMG080404-MA | 8.7 | 12.7 | 4.76 | 5.16 | 0.4 | |
| WNMG080408-MA | 8.7 | 12.7 | 4.76 | 5.16 | 0.8 | |
| WNMG080412-MA | 8.7 | 12.7 | 4.76 | 5.16 | 1.2 | |
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
